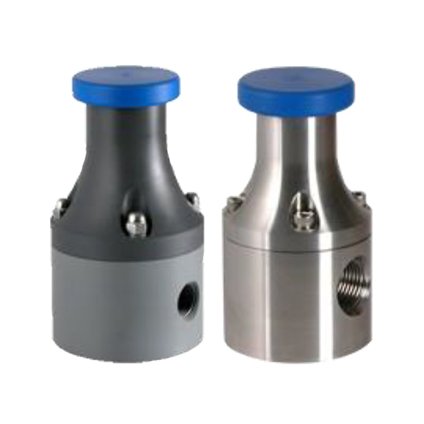

SENTINEL Pressure Relief Valve - High Pressure NPT/Socket Weld
SENTINEL Pressure Relief Valve - High Pressure NPT/Socket Weld
SKU:PRO-f44b9d
High-pressure relief valve for 50-350 psi discharge, NPT or Socket Weld connections, PVC top, optional low-pressure spring.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
SENTINEL Pressure Relief Valve - High Pressure NPT/Socket Weld
$59.99
Quantity: 1
Claim Your Seller Account
SENTINEL Pressure Relief Valve - High Pressure NPT/Socket Weld
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SENTINEL Pressure Relief Valve is a high-pressure solution designed for reliable performance in demanding environments. With options for NPT or Socket Weld connections (BSP available for select sizes), this valve can handle a discharge pressure range of 50 to 350 psi. Each valve includes a PVC top, with the option for Stainless or CPVC materials upon request. Equipped with a standard 5-150 PSI spring, it can also be configured with a low pressure spring (5-50 PSI) at no additional cost. Available in 1.5", 2", 3", and 4" sizes with two-port connections, BSP connections are also offered on specific models.
Product Specifications
Specifications Discharge Pressure
50 to 350 psi
Specifications Inlet Size
1/4", 3/8", 1/2" mini, 1/2", 3/4", 1"
