Series 10 Model 17 Ratchet Wrench - 32mm Bore Gear Opening
Series 10 Model 17 Ratchet Wrench - 32mm Bore Gear Opening
SKU:SER-6af4ae
Durable Series 10 Model 17 Ratchet Wrench with 32mm Bore Gear Opening conforming to US Federal standards.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

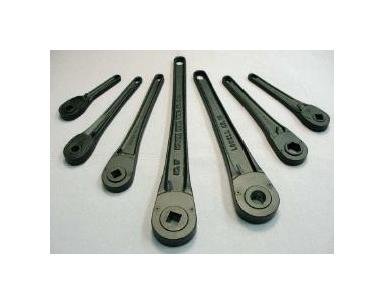

The Series 10 Model 17 Ratchet Wrench with a 32mm bore gear opening is crafted from durable cast malleable iron, ensuring reliability in rugged applications. Featuring enclosed, replaceable gears and a reversing control head, this wrench offers exceptional versatility. Complying with US Federal Specification GGG-W-653, Type I, Class 1 standards, this wrench is ideal for heavy-duty use and can be customized with special gear opening shapes and sizes upon request.
Product Specifications

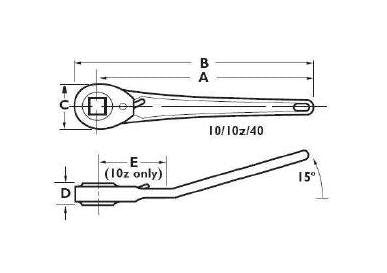

Specifications Dimension B
19 1/2 in | 495 mm
Specifications Dimension C
3 in | 76 mm
Specifications Dimension D
1 7/32 in | 30 mm

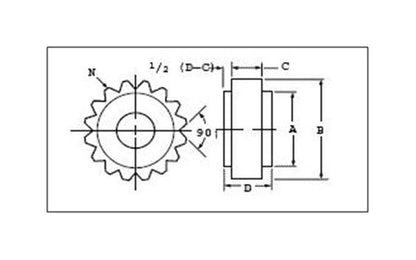

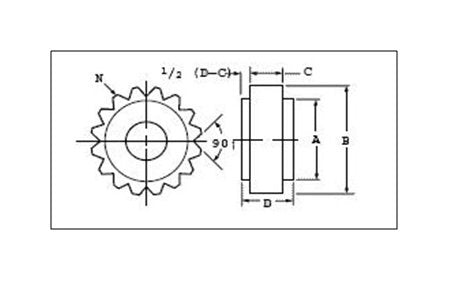

Specifications Gear Dimension A
1.840 in | 46.7 mm
Specifications Gear Dimension B
2.329 in | 59.2 mm
Specifications Gear Dimension C
.685 in | 17.4 mm
Specifications Gear Dimension D
1.218 in | 30.9 mm
Specifications Gear Opening Shape
Bore
Specifications Gear Opening Size
32 mm
Specifications Gear Part Number
M3132
Specifications Handle Nominal Length A
18 in | 458 mm
Specifications Handle Part Number
17901
Specifications Material
Cast Malleable Iron
Specifications Model
17
Specifications Number Of Teeth
20
Specifications Series
10
Specifications Standards
US Federal Specification GGG-W-653, Type I, Class 1
Specifications Weight
5 1/2 lb | 2.50 kg
