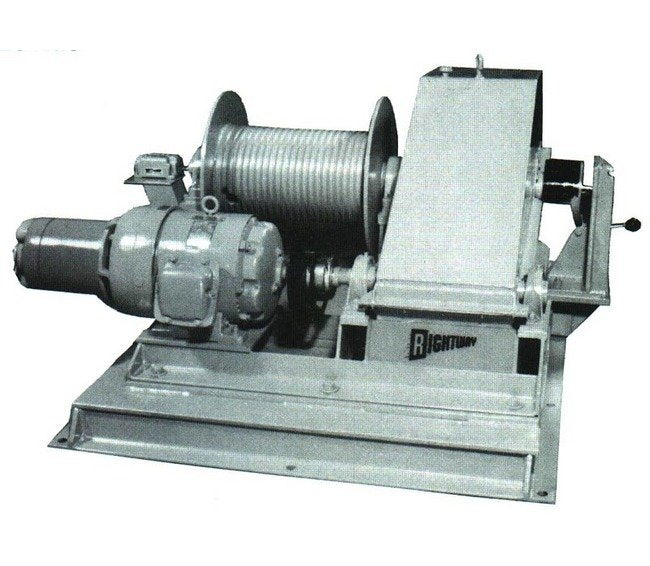

The Series 100 Model LE Electric Winch is designed for high-performance lifting and pulling applications. Equipped with a 15 HP motor and a capacity of 4000 lbs under full load, this winch ensures superior efficiency and safety. With features like an automatic mechanical load holding brake, large diameter drums for extended wire rope life, and all-weather usability, it meets the stringent requirements of crane and hoist duty operations. The enclosed oil lubricated power train and high torque motor make it ideal for heavy-duty use, requiring less horsepower while delivering faster operations.
Product Specifications
Specifications Capacity Full Load Running
4000
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 6 Layers
1148 ft.
Specifications Drum Diameter
12 inches
Specifications Line Speed
100 FPM
Specifications Motor
15 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
1150 lbs.
Specifications Optional Equipment
Grooved drums | Free spooling drums | Drum cable pressure roller for level winding assistance also prevents wire rope from uncoiling on drum when slack line occurs | Overspeed automatic load holding drum brake and electric shut-off | Torque limiter, mechanical (automatic resets when overload removed) | Rotary Geared Limit Switch - NEMA4 | Electric Motor Brake - (recommended for all hoisting applications)
Specifications Winch Height
24 inches
Specifications Winch Length
40 inches
Specifications Winch Width
30 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
575 ft.
Specifications Wire Rope Size
7/16 inches
Standard Features 0
Automatic mechanical load holding brake. Brake does not create heatTotal power train enclosed oil lubricated High torque crane and hoist duty motor starting capacity is minimum two (2) times running High efficiency power transmission lift more or faster with less horsepower required All weather use is ideal for model LE Large diameter drums increases wire rope life All steel construction minimum 5 to 1 structural safety factor
