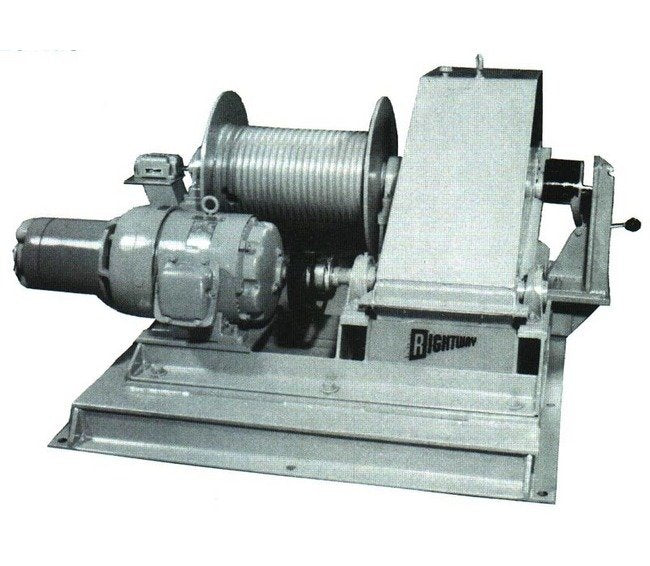

Series 100 LE Electric Winch - 10,000 lbs Capacity
Series 100 LE Electric Winch - 10,000 lbs Capacity
SKU:RIG-c8053e
Powerful and reliable 10,000 lbs capacity electric winch for heavy-duty lifting and pulling operations. Built to last and ensure safety in all-weather use.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Series 100 LE Electric Winch - 10,000 lbs Capacity
$2,899.99
Quantity: 1
Claim Your Seller Account
Series 100 LE Electric Winch - 10,000 lbs Capacity
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 100 Model LE Electric Winch is an ideal choice for heavy-duty lifting and pulling operations. With a 10,000 lbs full load capacity and a high torque 10 HP motor, this winch ensures efficient and powerful performance. It features a mechanical load holding brake that does not generate heat, ensuring safety during operations. The all-steel construction with a 5 to 1 structural safety factor offers durability and reliability for all-weather use. Additionally, the winch includes standard features like enclosed oil lubrication, large diameter drums for extended wire rope life, and high-efficiency power transmission. Suitable for various mounting positions and equipped with optional accessories for enhanced functionality, this winch is designed to meet the demanding requirements of heavy-duty applications in government and institutional settings.
Product Specifications
Specifications Capacity Full Load Running
10000
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 6 Layers
847 ft.
Specifications Drum Diameter
12 inches
Specifications Line Speed
28 FPM
Specifications Motor
10 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
1300 lbs.
Specifications Optional Equipment
Grooved drums | Free spooling drums | Drum cable pressure roller for level winding assistance also prevents wire rope from uncoiling on drum when slack line occurs | Overspeed automatic load holding drum brake and electric shut-off | Torque limiter, mechanical (automatic resets when overload removed) | Rotary Geared Limit Switch - NEMA4 | Electric Motor Brake - (recommended for all hoisting applications)
Specifications Winch Height
22 inches
Specifications Winch Length
40 inches
Specifications Winch Width
28 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
400 ft.
Specifications Wire Rope Size
5/8 inches
Standard Features 0
Automatic mechanical load holding brake. Brake does not create heatTotal power train enclosed oil lubricated High torque crane and hoist duty motor starting capacity is minimum two (2) times running High efficiency power transmission lift more or faster with less horsepower required All weather use is ideal for model LE Large diameter drums increases wire rope life All steel construction minimum 5 to 1 structural safety factor
