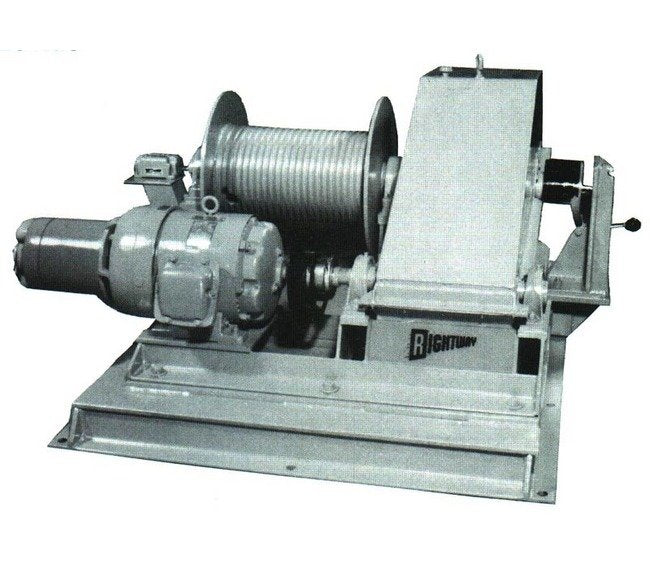

Series 100 LE Electric Winch
Series 100 LE Electric Winch
SKU:RIG-fc5e3f
Powerful Series 100 LE Electric Winch for reliable lifting and pulling tasks. Ideal for diverse applications.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Series 100 LE Electric Winch
$2,899.99
Quantity: 1
Claim Your Seller Account
Series 100 LE Electric Winch
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior lifting and pulling capabilities with the Series 100 LE Electric Winch. Equipped with a high torque motor, automatic load holding brake, and large diameter drums, this winch ensures efficient operation and increased wire rope durability. With all-steel construction and a 5 to 1 structural safety factor, it's designed for reliability in all weather conditions. Ideal for electrical brake applications, lifting, and pulling tasks in various settings.
Product Specifications
Specifications Capacity Full Load Running
7500
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 6 Layers
602 ft.
Specifications Drum Diameter
10 inches
Specifications Line Speed
28 FPM
Specifications Motor
7 1/2 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
1150 lbs.
Specifications Optional Equipment
Grooved drums | Free spooling drums | Drum cable pressure roller for level winding assistance also prevents wire rope from uncoiling on drum when slack line occurs | Overspeed automatic load holding drum brake and electric shut-off | Torque limiter, mechanical (automatic resets when overload removed) | Rotary Geared Limit Switch - NEMA4 | Electric Motor Brake - (recommended for all hoisting applications)
Specifications Winch Height
22 inches
Specifications Winch Length
34 inches
Specifications Winch Width
28 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
290 ft.
Specifications Wire Rope Size
9/16 inches
Standard Features 0
Automatic mechanical load holding brake. Brake does not create heatTotal power train enclosed oil lubricated High torque crane and hoist duty motor starting capacity is minimum two (2) times running High efficiency power transmission lift more or faster with less horsepower required All weather use is ideal for model LE Large diameter drums increases wire rope life All steel construction minimum 5 to 1 structural safety factor
