Series 100 Model 103 Ratchet Wrench with 25mm Bore Gear Opening

Name: Series 100 Model 103 Ratchet Wrench with 25mm Bore Gear Opening
Brand: Lowell Corporation
SKU: SER-6d68fb
Price: 39.99 USD
Availability: OutOfStock

SKU:SER-6d68fb

Precision Series 100 Ratchet Wrench with 25mm Bore Gear Opening for superior control and durability.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Series 100 Model 103 Ratchet Wrench features a 25mm bore gear opening, ideal for precise adjustments in various applications. With a durable handle length of 12 inches and a slim profile gear design, this wrench offers superior control and versatility. The bolt-through construction ensures sturdiness, while the vinyl grip provides comfort during extended use. Request custom gear opening shapes and sizes to meet specific requirements. Enhance your toolkit with the reliable performance of the Model 103.

Product Specifications

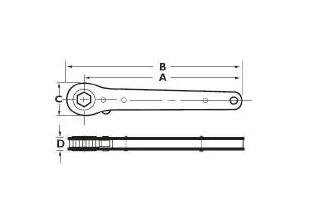

Specifications Gear Dimension A

1.840 in | 46.7 mm

Specifications Gear Dimension B

2.329 in | 59.2 mm

Specifications Gear Dimension C

.504 in | 12.8 mm

Specifications Gear Dimension D

.885 in | 22.5 mm

Specifications Gear Opening Shape

Bore

Specifications Gear Opening Size

25 mm

Specifications Gear Part Number

M9525

Specifications Handle Part Number

829L1

Specifications Model

103

Specifications Number Of Teeth

Specifications Overall Length B

13 1/2 in | 342 mm

Specifications Series

100

Specifications Socket Head Diameter C

2 1/2 in | 64 mm

Specifications Socket Length A

12 in | 305 mm

Specifications Thickness D

7/8 in | 22 mm

Specifications Weight

2 1/4 lb | 1.02 kg
