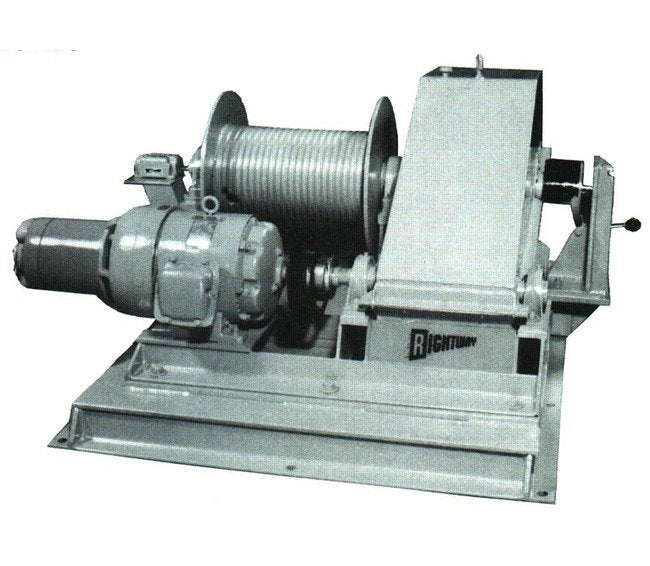

Series 100 Model LE Electric Winch - 6000 lbs Capacity
Series 100 Model LE Electric Winch - 6000 lbs Capacity
SKU:RIG-a292de
High-performance Series 100 Model LE Electric Winch - 6000 lbs Capacity, ideal for lifting and pulling applications, with advanced safety features.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Series 100 Model LE Electric Winch - 6000 lbs Capacity
$2,899.99
Quantity: 1
Claim Your Seller Account
Series 100 Model LE Electric Winch - 6000 lbs Capacity
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 100 Model LE Electric Winch is a versatile solution designed for both consumer and institutional needs. With a 6000 lbs full load capacity and a line speed of 30 FPM, this winch boasts high torque crane and hoist duty motor for efficient performance. Its all-steel construction with a 5 to 1 structural safety factor ensures durability and reliability. Equipped with an automatic mechanical load holding brake and a range of optional equipment such as overspeed automatic load holding drum brake and electric shut-off, this winch is suitable for lifting, pulling, and with an electrical brake requirement. Ideal for all-weather use, the large diameter drum enhances wire rope life, making it a top choice for various applications.
Product Specifications
Specifications Capacity Full Load Running
6000
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 6 Layers
536 ft.
Specifications Drum Diameter
8 inches
Specifications Line Speed
30 FPM
Specifications Motor
7 1/2 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
890 lbs.
Specifications Optional Equipment
Grooved drums | Free spooling drums | Drum cable pressure roller for level winding assistance also prevents wire rope from uncoiling on drum when slack line occurs | Overspeed automatic load holding drum brake and electric shut-off | Torque limiter, mechanical (automatic resets when overload removed) | Rotary Geared Limit Switch - NEMA4 | Electric Motor Brake - (recommended for all hoisting applications)
Specifications Winch Height
20 inches
Specifications Winch Length
34 inches
Specifications Winch Width
28 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
270 ft.
Specifications Wire Rope Size
1/2 inches
Standard Features 0
Automatic mechanical load holding brake. Brake does not create heatTotal power train enclosed oil lubricated High torque crane and hoist duty motor starting capacity is minimum two (2) times running High efficiency power transmission lift more or faster with less horsepower required All weather use is ideal for model LE Large diameter drums increases wire rope life All steel construction minimum 5 to 1 structural safety factor
