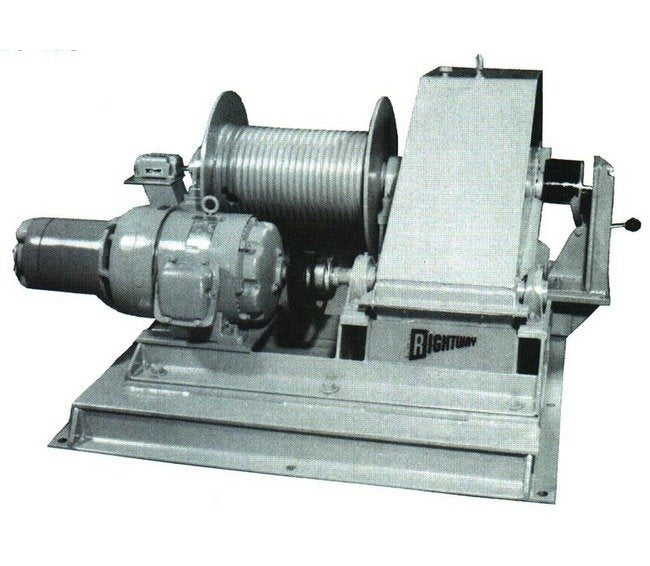

The Series 100 Model LE Electric Winch is built for robust performance, featuring an automatic mechanical load holding brake that does not generate heat. With a high torque motor and efficient power transmission, this winch offers a lifting capacity of 7500 lbs at a line speed of 35 FPM. Ideal for all-weather use, the winch boasts a durable all-steel construction with a large diameter drum for extended wire rope life. Equipped with essential safety features like overspeed automatic load holding brake and torque limiter, this winch ensures reliable and efficient operation for lifting and pulling applications.
Product Specifications
Specifications Capacity Full Load Running
7500
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 6 Layers
790 ft.
Specifications Drum Diameter
10 inches
Specifications Line Speed
35 FPM
Specifications Motor
10 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
1210 lbs.
Specifications Optional Equipment
Grooved drums | Free spooling drums | Drum cable pressure roller for level winding assistance also prevents wire rope from uncoiling on drum when slack line occurs | Overspeed automatic load holding drum brake and electric shut-off | Torque limiter, mechanical (automatic resets when overload removed) | Rotary Geared Limit Switch - NEMA4 | Electric Motor Brake - (recommended for all hoisting applications)
Specifications Winch Height
22 inches
Specifications Winch Length
40 inches
Specifications Winch Width
28 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
390 ft.
Specifications Wire Rope Size
9/16 inches
Standard Features 0
Automatic mechanical load holding brake. Brake does not create heatTotal power train enclosed oil lubricated High torque crane and hoist duty motor starting capacity is minimum two (2) times running High efficiency power transmission lift more or faster with less horsepower required All weather use is ideal for model LE Large diameter drums increases wire rope life All steel construction minimum 5 to 1 structural safety factor
