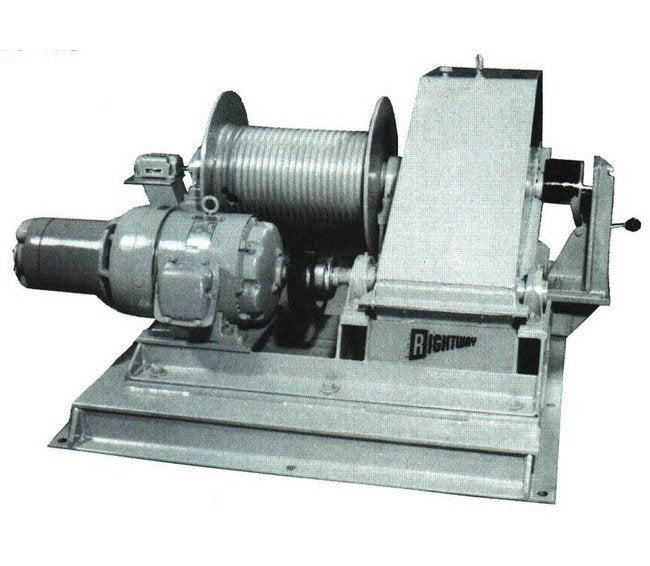

Series 100 Model LE Electric Winches - 4000 lb Capacity
Series 100 Model LE Electric Winches - 4000 lb Capacity
SKU:RIG-ea568a
High-performance electric winch with automatic load holding brake, ideal for lifting and pulling applications.
Regular price
$2,599.99
Regular price
Sale price
$2,599.99
Unit price
per
Initiate Order
Series 100 Model LE Electric Winches - 4000 lb Capacity
$2,599.99
Quantity: 1
Claim Your Seller Account
Series 100 Model LE Electric Winches - 4000 lb Capacity
$2,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 100 Model LE Electric Winches are designed for high-performance lifting and pulling applications, featuring an automatic mechanical load holding brake that does not generate heat. With a 10 HP motor, 70 FPM line speed, and 365 ft. wire rope capacity, these winches offer superior efficiency and reliability. The all-weather use design, large diameter drums, and all-steel construction ensure durability in demanding environments. Ideal for electrical brake required scenarios, lifting, and pulling tasks, this winch meets stringent industry standards for safety and performance.
Product Specifications
Specifications Capacity Full Load Running
4000
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 6 Layers
725 ft.
Specifications Drum Diameter
10 inches
Specifications Line Speed
70 FPM
Specifications Motor
10 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
910 lbs.
Specifications Optional Equipment
Grooved drums | Free spooling drums | Drum cable pressure roller for level winding assistance also prevents wire rope from uncoiling on drum when slack line occurs | Overspeed automatic load holding drum brake and electric shut-off | Torque limiter, mechanical (automatic resets when overload removed) | Rotary Geared Limit Switch - NEMA4 | Electric Motor Brake - (recommended for all hoisting applications)
Specifications Winch Height
22 inches
Specifications Winch Length
34 inches
Specifications Winch Width
28 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
365 ft.
Specifications Wire Rope Size
7/16 inches
Standard Features 0
Automatic mechanical load holding brake. Brake does not create heatTotal power train enclosed oil lubricated High torque crane and hoist duty motor starting capacity is minimum two (2) times running High efficiency power transmission lift more or faster with less horsepower required All weather use is ideal for model LE Large diameter drums increases wire rope life All steel construction minimum 5 to 1 structural safety factor
