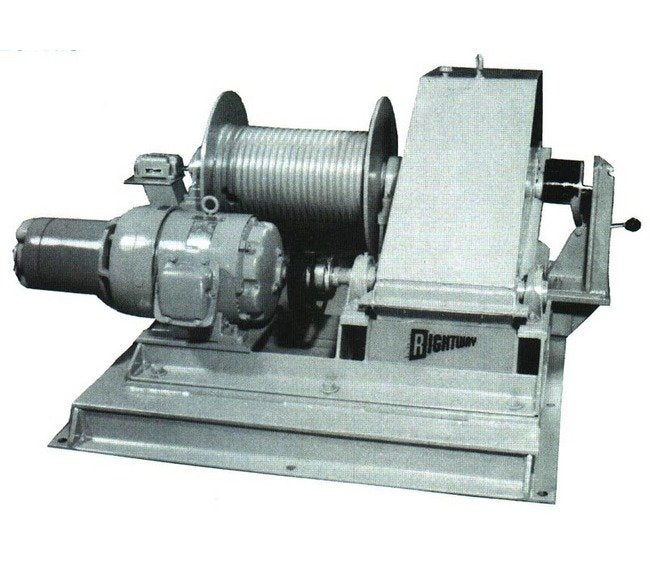

Series 100 Model LE Electric Winches - Heavy Duty 7.5 HP Motor
Series 100 Model LE Electric Winches - Heavy Duty 7.5 HP Motor
SKU:RIG-3e4a7f
Heavy-duty Series 100 Model LE Electric Winches for safe and efficient lifting and pulling tasks. Featuring a 7.5 HP motor, automatic load holding brake, and all-weather durability.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Series 100 Model LE Electric Winches - Heavy Duty 7.5 HP Motor
$2,899.99
Quantity: 1
Claim Your Seller Account
Series 100 Model LE Electric Winches - Heavy Duty 7.5 HP Motor
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 100 Model LE Electric Winches are designed for heavy-duty lifting and pulling applications. Featuring a 7.5 HP motor with high torque and an automatic mechanical load holding brake, these winches ensure safe and efficient operation. With a capacity of 10000 lbs and a line speed of 20 FPM, they offer reliable performance. The all-steel construction with a 5 to 1 structural safety factor, oil-lubricated power train, and large diameter drums enhance durability and wire rope life. Ideal for all-weather use, these winches are suitable for electrical brake-required applications, lifting, and pulling tasks.
Product Specifications
Specifications Capacity Full Load Running
10000
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 6 Layers
558 ft.
Specifications Drum Diameter
10 inches
Specifications Line Speed
20 FPM
Specifications Motor
7 1/2 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
1225 lbs.
Specifications Optional Equipment
Grooved drums | Free spooling drums | Drum cable pressure roller for level winding assistance also prevents wire rope from uncoiling on drum when slack line occurs | Overspeed automatic load holding drum brake and electric shut-off | Torque limiter, mechanical (automatic resets when overload removed) | Rotary Geared Limit Switch - NEMA4 | Electric Motor Brake - (recommended for all hoisting applications)
Specifications Winch Height
22 inches
Specifications Winch Length
34 inches
Specifications Winch Width
28 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
270 ft.
Specifications Wire Rope Size
5/8 inches
Standard Features 0
Automatic mechanical load holding brake. Brake does not create heatTotal power train enclosed oil lubricated High torque crane and hoist duty motor starting capacity is minimum two (2) times running High efficiency power transmission lift more or faster with less horsepower required All weather use is ideal for model LE Large diameter drums increases wire rope life All steel construction minimum 5 to 1 structural safety factor
