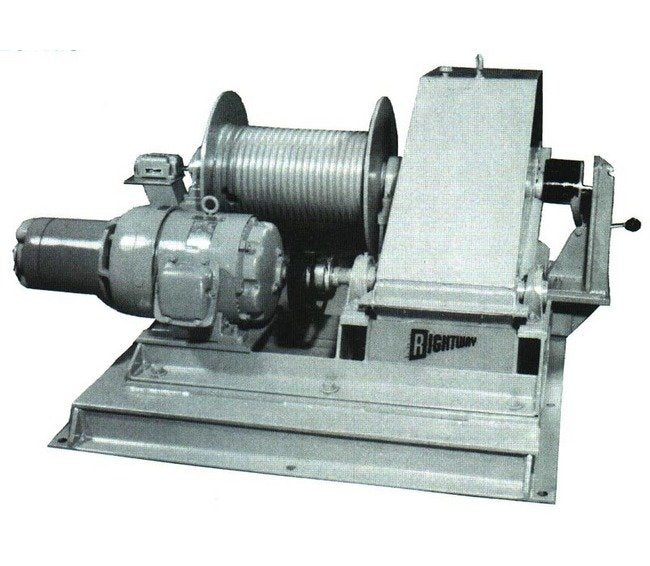

The Series 100 Model LE Electric Winches are built for rugged performance and reliability. Featuring an automatic mechanical load holding brake that does not generate heat, these winches boast a high-torque crane and hoist duty motor with a starting capacity double that of running capacity. With high efficiency power transmission, they can lift heavy loads with minimal horsepower, making them ideal for both lifting and pulling applications. Designed for all-weather use, these winches offer exceptional durability with large diameter drums that increase wire rope lifespan and a robust all-steel construction with a minimum 5 to 1 structural safety factor.
Product Specifications
Specifications Capacity Full Load Running
4000
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 6 Layers
590 ft.
Specifications Drum Diameter
8 inches
Specifications Line Speed
50 FPM
Specifications Motor
7 1/2 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
850 lbs.
Specifications Optional Equipment
Grooved drums | Free spooling drums | Drum cable pressure roller for level winding assistance also prevents wire rope from uncoiling on drum when slack line occurs | Overspeed automatic load holding drum brake and electric shut-off | Torque limiter, mechanical (automatic resets when overload removed) | Rotary Geared Limit Switch - NEMA4 | Electric Motor Brake - (recommended for all hoisting applications)
Specifications Winch Height
20 inches
Specifications Winch Length
34 inches
Specifications Winch Width
28 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
300 ft.
Specifications Wire Rope Size
7/16 inches
Standard Features 0
Automatic mechanical load holding brake. Brake does not create heatTotal power train enclosed oil lubricated High torque crane and hoist duty motor starting capacity is minimum two (2) times running High efficiency power transmission lift more or faster with less horsepower required All weather use is ideal for model LE Large diameter drums increases wire rope life All steel construction minimum 5 to 1 structural safety factor
