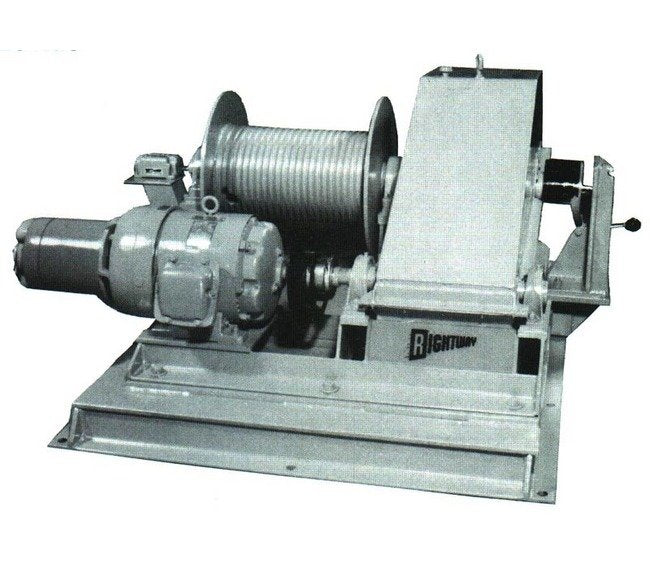

The Series 100 Model LE Electric Winches are designed for high-capacity lifting and pulling tasks, with a robust all-steel construction and a 5 to 1 safety factor. Featuring a powerful 15 HP motor, these winches ensure efficient power transmission for faster operations using less horsepower. With optional equipment such as grooved drums, free spooling capability, and overspeed automatic load holding brake, these winches meet the stringent requirements of industrial applications. Ideal for all-weather use, with a large diameter drum that extends wire rope life, these winches deliver reliable performance for demanding environments.
Product Specifications
Specifications Capacity Full Load Running
15000
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 6 Layers
935 ft.
Specifications Drum Diameter
16 inches
Specifications Line Speed
28 FPM
Specifications Motor
15 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
1800 lbs.
Specifications Optional Equipment
Grooved drums | Free spooling drums | Drum cable pressure roller for level winding assistance also prevents wire rope from uncoiling on drum when slack line occurs | Overspeed automatic load holding drum brake and electric shut-off | Torque limiter, mechanical (automatic resets when overload removed) | Rotary Geared Limit Switch - NEMA4 | Electric Motor Brake - (recommended for all hoisting applications)
Specifications Winch Height
28 inches
Specifications Winch Length
44 inches
Specifications Winch Width
38 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
460 ft.
Specifications Wire Rope Size
3/4 inches
Standard Features 0
Automatic mechanical load holding brake. Brake does not create heatTotal power train enclosed oil lubricated High torque crane and hoist duty motor starting capacity is minimum two (2) times running High efficiency power transmission lift more or faster with less horsepower required All weather use is ideal for model LE Large diameter drums increases wire rope life All steel construction minimum 5 to 1 structural safety factor
