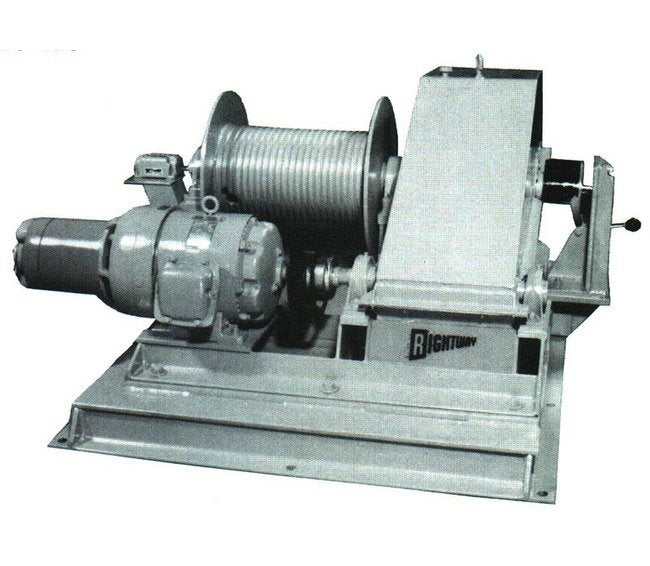

Series 100 Model LE Electric Winches with High Torque Motor
Series 100 Model LE Electric Winches with High Torque Motor
SKU:RIG-90e7e7
Heavy-duty electric winches with high torque motor for secure and efficient lifting and pulling operations.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Series 100 Model LE Electric Winches with High Torque Motor
$2,899.99
Quantity: 1
Claim Your Seller Account
Series 100 Model LE Electric Winches with High Torque Motor
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 100 Model LE Electric Winches are engineered for heavy-duty lifting and pulling applications. Featuring a high torque crane and hoist duty motor, these winches offer a capacity of 7500 lbs when fully loaded, with a line speed of 55 FPM. The winches come equipped with a range of safety features, including an automatic mechanical load holding brake that does not generate heat, ensuring secure operations in all weather conditions. With a durable all-steel construction and large diameter drums that increase wire rope life, these winches have a structural safety factor of minimum 5 to 1, meeting stringent industry standards for reliability and performance.
Product Specifications
Specifications Capacity Full Load Running
7500
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 6 Layers
921 ft.
Specifications Drum Diameter
12 inches
Specifications Line Speed
55 FPM
Specifications Motor
15 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
1450 lbs.
Specifications Optional Equipment
Grooved drums | Free spooling drums | Drum cable pressure roller for level winding assistance also prevents wire rope from uncoiling on drum when slack line occurs | Overspeed automatic load holding drum brake and electric shut-off | Torque limiter, mechanical (automatic resets when overload removed) | Rotary Geared Limit Switch - NEMA4 | Electric Motor Brake - (recommended for all hoisting applications)
Specifications Winch Height
24 inches
Specifications Winch Length
40 inches
Specifications Winch Width
30 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
460 ft.
Specifications Wire Rope Size
9/16 inches
Standard Features 0
Automatic mechanical load holding brake. Brake does not create heatTotal power train enclosed oil lubricated High torque crane and hoist duty motor starting capacity is minimum two (2) times running High efficiency power transmission lift more or faster with less horsepower required All weather use is ideal for model LE Large diameter drums increases wire rope life All steel construction minimum 5 to 1 structural safety factor
