Series 20 Model 24 Ratchet Wrench with 32mm Gear Opening
Series 20 Model 24 Ratchet Wrench with 32mm Gear Opening
SKU:SER-cfd9cc
Heavy-duty Series 20 Ratchet Wrench with 32mm Gear Opening, ideal for rigorous applications and meeting US Federal Spec. GGGW-653 standards.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Series 20 Model 24 Ratchet Wrench with 32mm Gear Opening
$89.99
Quantity: 1
Claim Your Seller Account
Series 20 Model 24 Ratchet Wrench with 32mm Gear Opening
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

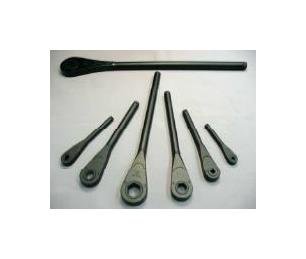

The Series 20 Model 24 Ratchet Wrench is a heavy-duty tool crafted from cast malleable iron, ensuring durability for rigorous applications. With a reversible control at the handle end and a knurled knob for safety and convenience, this wrench offers optimal performance. Compliant with US Federal Spec. GGGW-653, Type I, Class 2 standards, this wrench features a 32mm bore gear opening and is designed for reliability and longevity in demanding work environments. Custom gear sizes and shapes available upon request.
Product Specifications

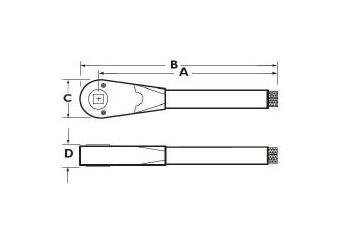

Specifications Dimension B
17 1/8 in | 434 mm
Specifications Dimension C
3 1/8 in | 80 mm
Specifications Dimension D
1 7/32 in | 30 mm

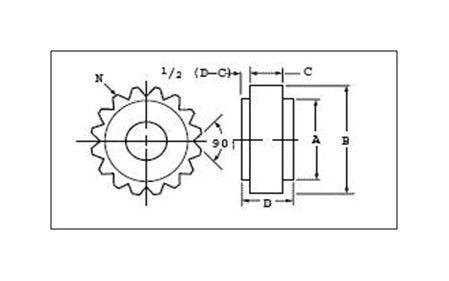

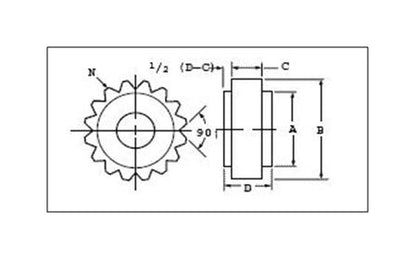

Specifications Gear Dimension A
1.840 in | 46.7 mm
Specifications Gear Dimension B
2.329 in | 59.2 mm
Specifications Gear Dimension C
.685 in | 17.4 mm
Specifications Gear Dimension D
1.218 in | 30.9 mm
Specifications Gear Opening Shape
Bore
Specifications Gear Opening Size
32 mm
Specifications Gear Part Number
M3132
Specifications Handle Nominal Length A
15 9/16 in | 395 mm
Specifications Handle Part Number
24901
Specifications Material
Cast Malleable Iron
Specifications Model
24
Specifications Number Of Teeth
20
Specifications Series
20
Specifications Standards
US Federal Specification GGG-W-653, Type I, Class 2
Specifications Weight
6 1/4 lb | 2.84 kg
