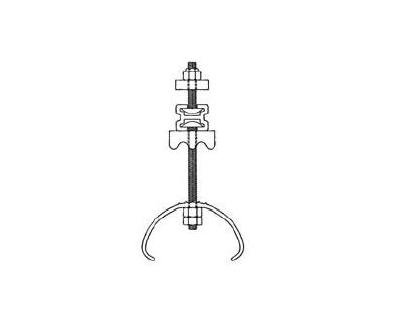

Series 200 I Beam End Clamp for Flat Cable

Name: Series 200 I Beam End Clamp for Flat Cable
Brand: Clutch Engineering
SKU: CRA-3d37ec
Price: 29.99 USD
Availability: OutOfStock

SKU:CRA-3d37ec

Securely hold flat cables with precision using the Series 200 I Beam End Clamp. Durable aluminum body with neoprene rubber pad.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

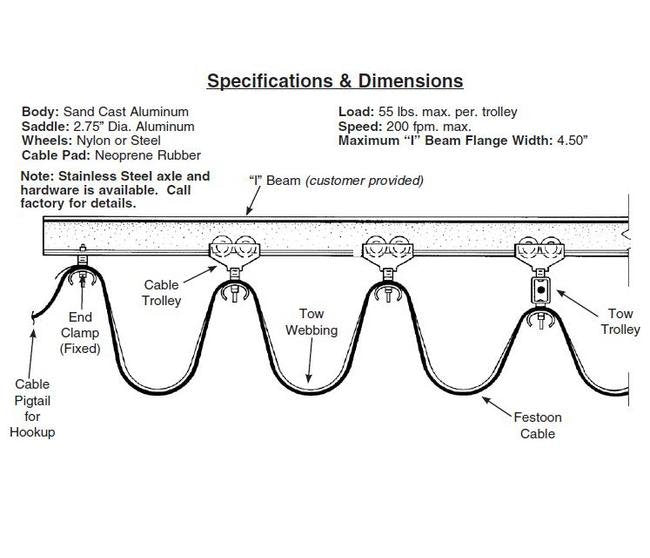

The Series 200 I Beam End Clamp is an essential component for your cable festoon system, designed to securely hold flat cables in place with precision. Constructed with a sand cast aluminum body and equipped with a neoprene rubber cable pad, this clamp ensures durability and protection for your cables. With a maximum I Beam flange width of 4.50 inches and a load capacity of 55 lbs, this clamp is suitable for applications requiring a speed of up to 200 fpm. The stainless steel axle and hardware option provide enhanced strength and corrosion resistance, making it ideal for industrial settings. Contact us today for more details on customization options.

Product Specifications

Specifications Body Type

Sand Cast Aluminum

Specifications Cable Pad

Neoprene Rubber

Specifications Load

55 lb

Specifications Maximum I Beam Flange Width

4.50 in

Specifications Saddle Diameter

2.75 in

Specifications Speed

200 fpm

Specifications Weight

0.75 lb

Specifications Wheel Material

Steel without Anti-Lift Rollers
