Series 200 Model GE Electric Winch - Heavy-Duty 40HP Crane Winch
Series 200 Model GE Electric Winch - Heavy-Duty 40HP Crane Winch
SKU:RIG-624640
Powerful Series 200 Model GE Electric Winch - 20,000 lbs capacity, high torque 40 HP motor, ideal for crane and hoist duty.
Regular price
$17,599.99
Regular price
Sale price
$17,599.99
Unit price
per
Initiate Order
Series 200 Model GE Electric Winch - Heavy-Duty 40HP Crane Winch
$17,599.99
Quantity: 1
Claim Your Seller Account
Series 200 Model GE Electric Winch - Heavy-Duty 40HP Crane Winch
$17,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

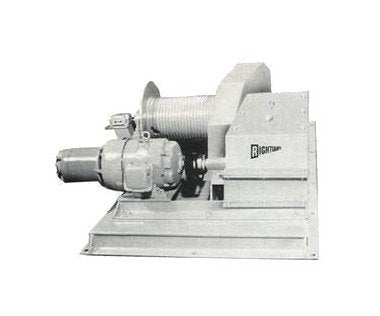

Experience unparalleled lifting power and efficiency with the Series 200 Model GE Electric Winch. Featuring a high torque 40 HP motor, this winch is designed for crane and hoist duty with a minimum 2x starting capacity. With a capacity to lift 20,000 lbs at a line speed of 60 FPM, it boasts a 5 to 1 structural safety factor. The winch is equipped with standard features such as oil lubrication, large diameter drums for extended rope life, and all-weather usability. Optional equipment includes grooved drums, free spooling capability, and safety features like overspeed automatic load holding brake and torque limiter for enhanced operational safety.
Product Specifications
Specifications Capacity Full Load Running
20000
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 6 Layers
1100 ft.
Specifications Drum Diameter
18 inches
Specifications Line Speed
60 FPM
Specifications Motor
40 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
7100 lbs.
Specifications Optional Equipment
Grooved drums | Free spooling drums | Drum cable pressure roller for level winding assistance also prevents wire rope from uncoiling on drum when slack line occurs | Overspeed automatic load holding drum brake and electric shut-off | Torque limiter, mechanical (automatic resets when overload removed) | Rotary Geared Limit Switch - NEMA4 | Electric Motor Brake - (recommended for all hoisting applications)
Specifications Winch Height
31 inches
Specifications Winch Length
73 inches
Specifications Winch Width
61 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
555 ft.
Specifications Wire Rope Size
7/8 inches
Standard Features 0

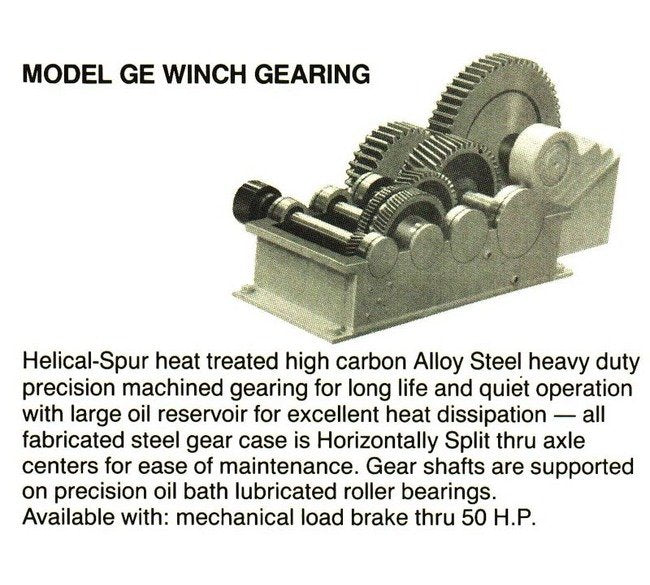

Total power train enclosed oil lubricatedHigh torque crane and hoist duty motor starting capacity is minimum two (2) times running High efficiency power transmission lift more or faster with less horsepower required All weather use is ideal for model GE Large diameter drums increases wire rope life All steel construction minimum 5 to 1 structural safety factor
