Series 200 Model GE Electric Winch - High Capacity
Series 200 Model GE Electric Winch - High Capacity
SKU:RIG-7e6c60
High-capacity Series 200 Model GE Electric Winch for heavy-duty lifting and pulling tasks, featuring a 40 HP motor and 40,000 lbs capacity.
Regular price
$12,599.99
Regular price
Sale price
$12,599.99
Unit price
per
Initiate Order
Series 200 Model GE Electric Winch - High Capacity
$12,599.99
Quantity: 1
Claim Your Seller Account
Series 200 Model GE Electric Winch - High Capacity
$12,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

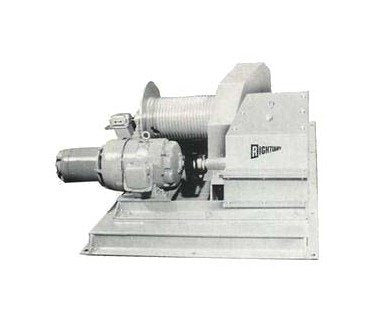

The Series 200 Model GE Electric Winch is a powerhouse designed for heavy-duty applications. With a 40 HP motor and a high structural safety factor, it offers a capacity of 40,000 lbs at a line speed of 30 FPM. The winch features a 24-inch drum diameter, ideal for lifting and pulling tasks, with large wire rope capacity. Equipped with optional equipment such as a torque limiter and rotary geared limit switch, this winch ensures safety and efficiency in operation. Suitable for various mounting positions and controlled by lever drum or magnetic remote pushbutton, it meets the demanding standards of industrial and government procurement requirements.
Product Specifications
Specifications Capacity Full Load Running
40000
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 6 Layers
1245 ft.
Specifications Drum Diameter
24 inches
Specifications Line Speed
30 FPM
Specifications Motor
40 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
9900 lbs.
Specifications Optional Equipment
Grooved drums | Free spooling drums | Drum cable pressure roller for level winding assistance also prevents wire rope from uncoiling on drum when slack line occurs | Overspeed automatic load holding drum brake and electric shut-off | Torque limiter, mechanical (automatic resets when overload removed) | Rotary Geared Limit Switch - NEMA4 | Electric Motor Brake - (recommended for all hoisting applications)
Specifications Winch Height
47 inches
Specifications Winch Length
81 inches
Specifications Winch Width
75 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
625 ft.
Specifications Wire Rope Size
1 1/4 inches
Standard Features 0

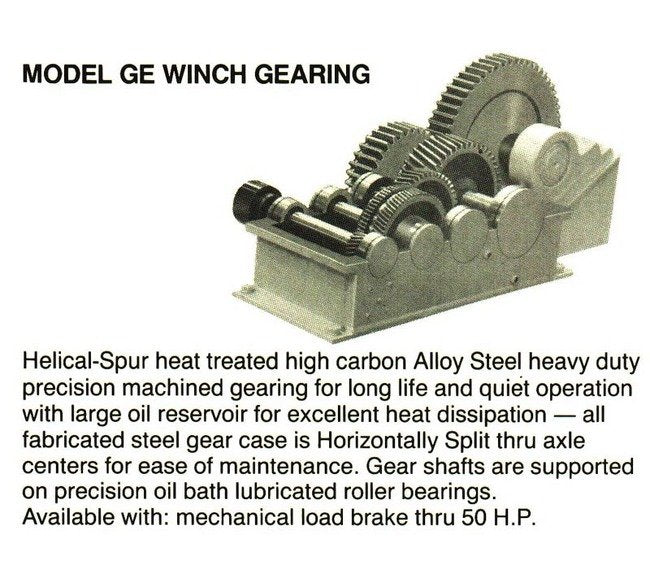

Total power train enclosed oil lubricatedHigh torque crane and hoist duty motor starting capacity is minimum two (2) times running High efficiency power transmission lift more or faster with less horsepower required All weather use is ideal for model GE Large diameter drums increases wire rope life All steel construction minimum 5 to 1 structural safety factor
