Series 225 I Beam Flat Cable Control Box Trolley

Name: Series 225 I Beam Flat Cable Control Box Trolley
Brand: Clutch Engineering
SKU: CRA-6c8147
Price: 89.99 USD
Availability: OutOfStock

SKU:CRA-6c8147

Enhance your crane control setup with the durable & efficient Series 225 I Beam Control Box Trolley, featuring 225 fpm speed & 150 lb load capacity.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

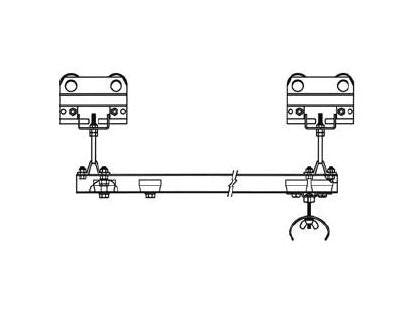

The Series 225 I Beam Flat Cable Control Box Trolley is a must-have accessory for crane control systems, featuring two trolleys and a sturdy steel saddle mounted on a bracket for secure attachment of the control box. With a speed of 225 fpm and a load capacity of 150 lb, this trolley ensures efficient and reliable cable festooning. Crafted from low carbon steel with zinc-plated hardware, anti-lift rollers, and hardened steel rollers, this trolley guarantees durability and smooth operation. Measuring at 26.25 inches in length and boasting a saddle diameter of 3.4 inches, this trolley is designed for optimal performance and ease of installation.

Product Specifications

Specifications Anti Lift Rollers

Hardened Steel Diameter 1.19 in

Specifications Body Type

Low carbon Steel

Specifications Cable Window Height

1.00 in

Specifications Cable Window Width

2.38 in

Specifications Finish

Zinc Plated with yellow Dichromate Seal

Specifications Hardware

Zinc Plated

Specifications Load

150 lb

Specifications Main Rollers

Hardened Steel Diameter 1.68 in

Specifications Saddle Diameter

3.4 in

Specifications Saddle Type

Low Carbon Steel

Specifications Speed

225 fpm

Specifications Weight

13.0 lb

Series 225 I Beam Flat Cable Control Box Trolley
