Series 225 I Beam Flat Cable End Clamp
Series 225 I Beam Flat Cable End Clamp
SKU:CRA-9508e3
Secure and durable Series 225 I Beam Flat Cable End Clamp for efficient cable management in crane control systems.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Series 225 I Beam Flat Cable End Clamp
$49.99
Quantity: 1
Claim Your Seller Account
Series 225 I Beam Flat Cable End Clamp
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

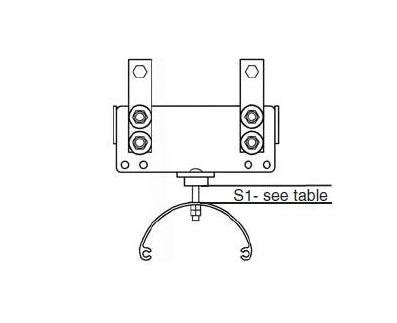

The Series 225 I Beam Flat Cable End Clamp is a vital component in cable festoon systems, constructed with Zinc Plated material for durability. Featuring a Saddle Diameter of 8 inches and a Saddle Width of 5 1/4 inches, this clamp ensures secure cable placement. With a Unit Length of 11 3/8 inches and a Cable Window suitable for cables up to 3.9 inches wide and 2.0 inches high, it supports a Speed of 250 fpm and a Load capacity of 95 lb. Ideal for crane control and electrification applications, this clamp offers reliability and compliance with industry standards.
Product Specifications
Specifications Cable Window Height
2.0 in
Specifications Cable Window Width
3.9 in
Specifications Load
95 lb
Specifications Material
Zinc Plated
Specifications Saddle Diameter
8 in
Specifications Saddle Width
5 1/4 in
Specifications Speed
250 fpm
Specifications Unit Length
11 3/8 in
Specifications Weight
8.0 lb
