Series 225 I-Beam Flat Cable End Clamp
Series 225 I-Beam Flat Cable End Clamp
SKU:CRA-bad127
Securely manage flat cables with our Series 225 I-Beam End Clamp, designed for durability and high-performance in crane control systems.
Regular price
$64.99
Regular price
Sale price
$64.99
Unit price
per
Initiate Order
Series 225 I-Beam Flat Cable End Clamp
$64.99
Quantity: 1
Claim Your Seller Account
Series 225 I-Beam Flat Cable End Clamp
$64.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

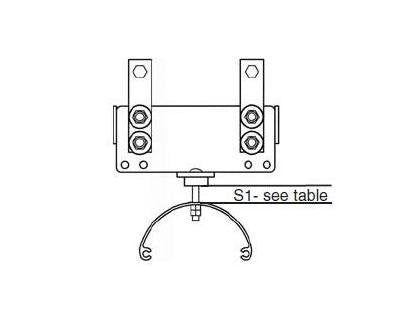

The Series 225 I-Beam Flat Cable End Clamp is an essential component for secure installation and management of flat cables in crane control and electrification systems. Constructed from Zinc Plated material, this clamp features a sturdy saddle with a diameter of 6 inches and a width of 8 inches, ensuring reliable cable support. With a unit length of 8 7/8 inches and a cable window width of 6.7 inches, this clamp is designed for compatibility with Series 250 I-Beam Festoon Systems. It can withstand speeds of up to 250 fpm and a load capacity of 95 lb, making it ideal for heavy-duty industrial applications.
Product Specifications
Specifications Cable Window Height
2.0 in
Specifications Cable Window Width
6.7 in
Specifications Load
95 lb
Specifications Material
Zinc Plated
Specifications Saddle Diameter
6 in
Specifications Saddle Width
8 in
Specifications Speed
250 fpm
Specifications Unit Length
8 7/8 in
Specifications Weight
8.0 lb
