Series 225 I Beam Flat Cable Trolley
Series 225 I Beam Flat Cable Trolley
SKU:CRA-31a67b
Durable Series 225 I Beam Flat Cable Trolley - Max Load 150 lbs - Speed 225 fpm - Corrosion-resistant - Ideal for Crane Control Systems
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Series 225 I Beam Flat Cable Trolley
$69.99
Quantity: 1
Claim Your Seller Account
Series 225 I Beam Flat Cable Trolley
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

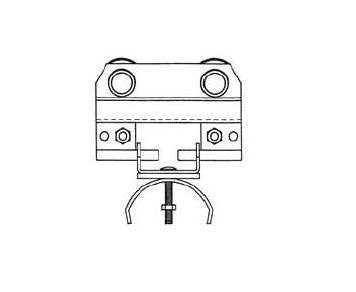

The Series 225 I Beam Flat Cable Trolley is a durable solution for efficient cable management in crane control systems. Constructed with low carbon steel, this trolley can support a maximum load of 150 lbs. It features anti-lift rollers and main rollers made of hardened steel, ensuring smooth operation at speeds of up to 225 fpm. The zinc-plated finish with yellow Dichromate Seal provides corrosion resistance, while the 3.4-inch saddle diameter accommodates flat cables with ease. With a cable window width of 2.38 inches and a height of 1.00 inch, this trolley is designed to meet the demanding needs of industrial environments.
Product Specifications
Specifications Anti Lift Rollers
Hardened Steel Diameter 1.19 in
Specifications Body Type
Low carbon Steel
Specifications Cable Window Height
1.00 in
Specifications Cable Window Width
2.38 in
Specifications Finish
Zinc Plated with yellow Dichromate Seal
Specifications Hardware
Zinc Plated
Specifications Load
150 lb
Specifications Main Rollers
Hardened Steel Diameter 1.68 in
Specifications Saddle Diameter
3.4 in
Specifications Saddle Type
Low Carbon Steel
Specifications Speed
225 fpm
Specifications Weight
8.5 lb
