Series 225 Single Control Trolley for I Beam Festoon Systems
Series 225 Single Control Trolley for I Beam Festoon Systems
SKU:CRA-ee79d5
High-performance Series 225 Single Control Trolley for I Beam Festoon Systems - Speed: 225 fpm, Load: 150 lb, Low carbon Steel Body, Zinc Plated Finish
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Series 225 Single Control Trolley for I Beam Festoon Systems
$89.99
Quantity: 1
Claim Your Seller Account
Series 225 Single Control Trolley for I Beam Festoon Systems
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

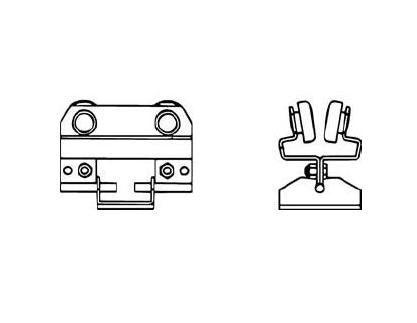

The Series 225 Single Control Trolley is a precision-designed trolley suitable for mounting junction boxes. With a durable low carbon steel body and hardened steel rollers, this trolley offers a Speed of 225 fpm and can support a Load of up to 150 lb. The Zinc Plated finish with yellow Dichromate Seal ensures corrosion resistance. The saddle diameter of 3.4 inches accommodates a Cable Window Width of 2.38 inches and a Height of 1.00 inch, providing a secure and efficient cable management solution for industrial applications.
Product Specifications
Specifications Anti Lift Rollers
Hardened Steel Diameter 1.19 in
Specifications Body Type
Low carbon Steel
Specifications Cable Window Height
1.00 in
Specifications Cable Window Width
2.38 in
Specifications Finish
Zinc Plated with yellow Dichromate Seal
Specifications Hardware
Zinc Plated
Specifications Load
150 lb
Specifications Main Rollers
Hardened Steel Diameter 1.68 in
Specifications Saddle Diameter
3.4 in
Specifications Saddle Type
Low Carbon Steel
Specifications Speed
225 fpm
Specifications Weight
5.0 lb
