Series 250 I Beam Cable Trolley for Flat Cable
Series 250 I Beam Cable Trolley for Flat Cable
SKU:CRA-407fae
Efficiently manage flat cables with the Series 250 I Beam Cable Trolley designed for stability and durability.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Series 250 I Beam Cable Trolley for Flat Cable
$79.99
Quantity: 1
Claim Your Seller Account
Series 250 I Beam Cable Trolley for Flat Cable
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

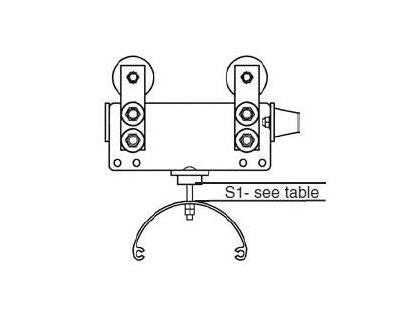

The Series 250 I Beam Cable Trolley for Flat Cable is an essential component for efficient cable management in crane control systems. Crafted from Zinc Plated material, this trolley boasts a sturdy construction to support heavy loads of up to 95 lb with ease. It features main rollers of 1.58 in and optional Anti-Lift Rollers of 1.38 in, ensuring smooth cable movement at speeds of up to 250 fpm. The 6-inch Saddle Diameter and 5 1/4-inch Saddle Width provide stability while the 3.9-inch wide Cable Window accommodates flat cables effortlessly. Whether for industrial or institutional use, this cable trolley delivers reliable performance and durability.
Product Specifications
Specifications Anti Lift Rollers
1.38 in
Specifications Cable Window Height
2.0 in
Specifications Cable Window Width
3.9 in
Specifications Load
95 lb
Specifications Main Rollers
1.58 in
Specifications Material
Zinc Plated
Specifications Saddle Diameter
6 in
Specifications Saddle Width
5 1/4 in
Specifications Speed
250 fpm
Specifications Unit Length
10 1/8 in
Specifications Weight
10.0 lb
