Series 250 I Beam Flat Cable Tow Trolley

Name: Series 250 I Beam Flat Cable Tow Trolley
Brand: Clutch Engineering
SKU: CRA-dcb639
Price: 129.99 USD
Availability: OutOfStock

SKU:CRA-dcb639

Durable Series 250 I Beam Flat Cable Tow Trolley for efficient crane control. Zinc Plated with Steel Rollers. Speed: 250 fpm, Load: 95 lb.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

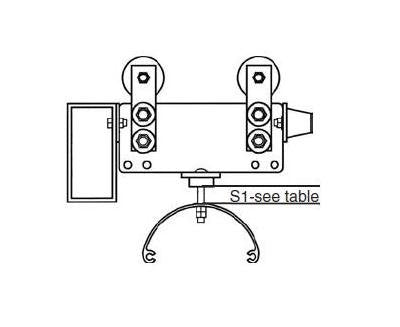

The Series 250 I Beam Flat Cable Tow Trolley is a robust solution designed for efficient material handling in crane control systems. Constructed with Zinc Plated material, this trolley features Steel Flanged Main Rollers and Steel Anti-Lift Rollers for enhanced durability. The 8-inch Saddle Diameter and 5 1/4-inch Saddle Width provide a secure fit on Series 250 I Beams, while the 15 1/8-inch length ensures stability during operation. With a Cable Window Width of 3.9 inches and a Cable Window Height of 2.0 inches, this tow trolley accommodates flat cables seamlessly. Operating at a speed of 250 fpm and a load capacity of 95 lbs, it offers reliable performance in industrial settings. Anti-lift rollers are included for added safety and functionality.

Product Specifications

Specifications Anti Lift Rollers

Steel Diameter 1.38 in

Specifications Cable Window Height

2.0 in

Specifications Cable Window Width

3.9 in

Specifications Load

95 lb

Specifications Main Rollers

Steel Flanged Diameter 1.58 in

Specifications Material

Zinc Plated

Specifications Saddle Diameter

8 in

Specifications Saddle Width

5 1/4 in

Specifications Speed

250 fpm

Specifications Unit Length

15 1/8 in

Specifications Weight

14.5 lb
