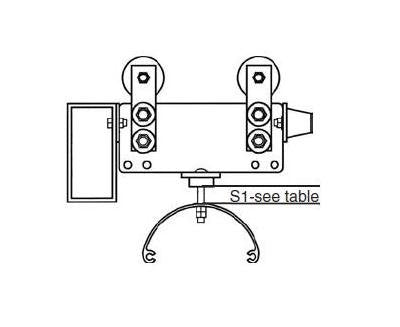

Series 250 I-Beam Flat Cable Tow Trolley

Name: Series 250 I-Beam Flat Cable Tow Trolley
Brand: Clutch Engineering
SKU: CRA-da3301
Price: 289.99 USD
Availability: OutOfStock

SKU:CRA-da3301

Upgrade your crane control system with the Series 250 I-Beam Flat Cable Tow Trolley. Zinc Plated, Steel Flanged rollers, Anti-Lift rollers, 95 lb load capacity, 250 fpm speed.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your crane control system with the Series 250 I-Beam Flat Cable Tow Trolley. Crafted with Zinc Plated material and featuring robust Steel Flanged main rollers and Anti-Lift rollers, this trolley ensures smooth cable movement. With a weight capacity of 95 lb and a speed of 250 fpm, it is ideal for industrial applications. The 6.7-inch Cable Window Width and 2.0-inch Cable Window Height provide ample space for flat cables, while the 6-inch Saddle Diameter and 8-inch Saddle Width offer secure cable support. Compliant with industry standards, this tow trolley is a reliable choice for your crane electrification needs.

Product Specifications

Specifications Anti Lift Rollers

Steel Diameter 1.38 in

Specifications Cable Window Height

2.0 in

Specifications Cable Window Width

6.7 in

Specifications Load

95 lb

Specifications Main Rollers

Steel Flanged Diameter 1.58 in

Specifications Material

Zinc Plated

Specifications Saddle Diameter

6 in

Specifications Saddle Width

8 in

Specifications Speed

250 fpm

Specifications Unit Length

12 5/8 in

Specifications Weight

14.5 lb
