High-performance Series 250 I Beam Flat Cable Trolley for efficient cable festoon systems. Zinc-plated, anti-lift rollers, and sturdy saddle design.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Series 250 I Beam Flat Cable Trolley
$79.99
Quantity: 1
Claim Your Seller Account
Series 250 I Beam Flat Cable Trolley
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

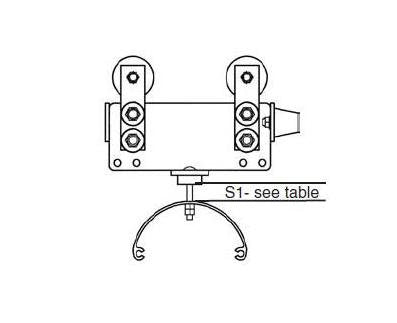

The Series 250 I Beam Flat Cable Trolley is an essential component for efficient cable festoon systems in crane control and electrification applications. Made of high-quality zinc-plated material, this trolley features anti-lift rollers (optional), 1.58 inch main rollers, and 1.38 inch anti-lift rollers for smooth cable movement. With a sturdy saddle design measuring 6 inches in diameter and 8 inches in width, this trolley ensures secure cable placement. It has a unit length of 10 1/8 inches, cable window width of 6.7 inches, height of 2.0 inches, and can handle a speed of up to 250 fpm with a maximum load capacity of 95 lbs. Ensure reliable cable management and optimal performance with the Series 250 I Beam Flat Cable Trolley.
Product Specifications
Specifications Anti Lift Rollers
1.38 in
Specifications Cable Window Height
2.0 in
Specifications Cable Window Width
6.7 in
Specifications Load
95 lb
Specifications Main Rollers
1.58 in
Specifications Material
Zinc Plated
Specifications Saddle Diameter
6 in
Specifications Saddle Width
8 in
Specifications Speed
250 fpm
Specifications Unit Length
10 1/8 in
Specifications Weight
10.0 lb
