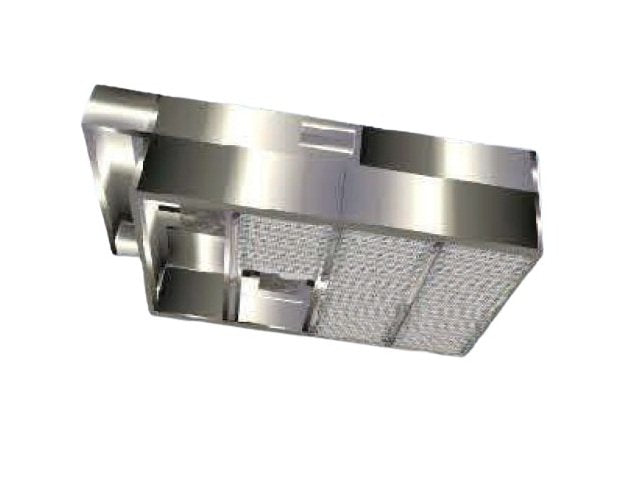

Series 3000C Suspended Ceiling Module with Backward Curve Fan
Series 3000C Suspended Ceiling Module with Backward Curve Fan
SKU:SER-987876
Top-of-the-line suspended ceiling module for ISO 4 cleanrooms with HEPA/ULPA filters, NEMA 4X controls, and LED lighting.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
Series 3000C Suspended Ceiling Module with Backward Curve Fan
$3,499.99
Quantity: 1
Claim Your Seller Account
Series 3000C Suspended Ceiling Module with Backward Curve Fan
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 3000C Suspended Ceiling Module with Backward Curve Fan is a top-of-the-line air filtration system designed for ISO 4 applications. Made by Laminar Flow Inc., this self-contained system boasts a patented welded construction using 304 or 316L stainless steel. It features HEPA/ULPA filters, NEMA 4X controls, LED lighting, filter pressure monitoring, and BAS feedback. With options like gel-sealed filters, touchscreen controls, and modular sections, it ensures precise air disinfection, purification, and filtration. Perfect for achieving ISO 4 cleanroom standards without compromising on quality.
Product Specifications
Construction Construction

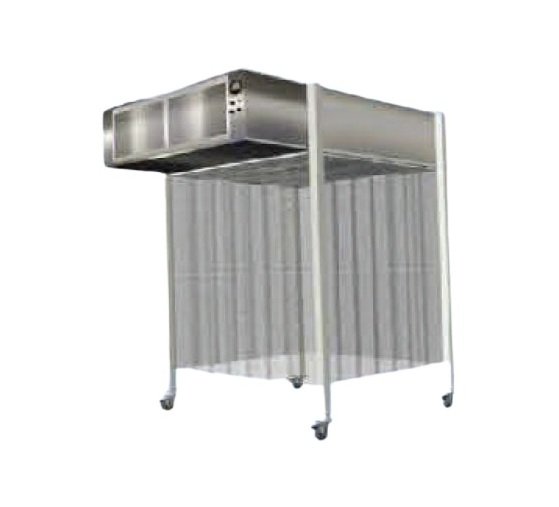

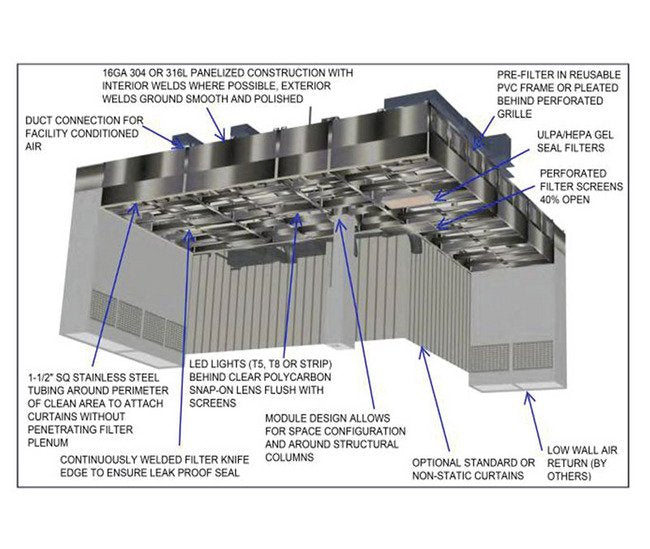

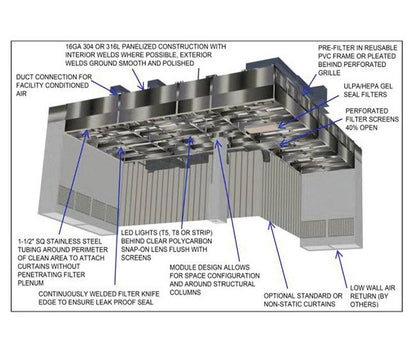

LFI's ceiling module is a completely self-contained system utilizing patented welded construction. Systems are fabricated from heavy-duty 14 and 16 ga 304 or 316L stainless steel with a #4; polished finish. Exterior welds are kept to a minimum and ground smooth and polished. Continuously welded and formed patented filter grid ensures a completely self-contained leak-free system. 1-piece formed light channels are recessed and continuously welded to the filter grid. Systems are shipped in sections with internal wiring complete in each section. Stainless steel perimeter tubing allows for curtain installation without penetrating the filter plenum.
Controls And Features Controls And Features

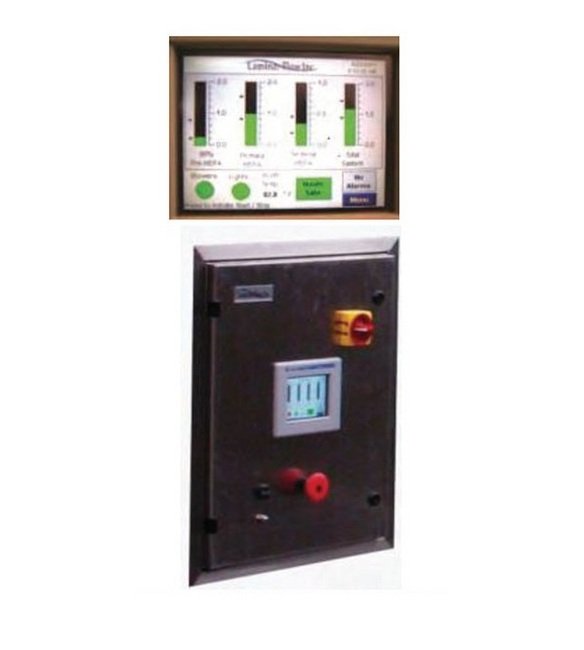

National Electrical Manufacturers Association (NEMA) 4X LOP (Local Operator Panel) can be located in the clean area for easy access.National Electrical Manufacturers Association (NEMA) 12 remote with main fuses, overloads & driversInternal baffles to provide 90 FPM ± 20% on averageInterior Light-Emitting Diode (LED) lighting, 4000K, dimmableInjection and sample portsFilter pressure monitoring gaugeVisual and/or audio alerts for low and high pressureBuilding Automation System (BAS) feedback for remote monitoringComplete File Allocation Table (FAT) and electronic manual supplied
Electrical Electrical
EC blowersAll control enclosures are UL508A CertifiedAll wiring is in accordance with UL guidelinesHazardous location components available
High Efficiency Particulate Air Hepaultra Low Particulate Air Ul

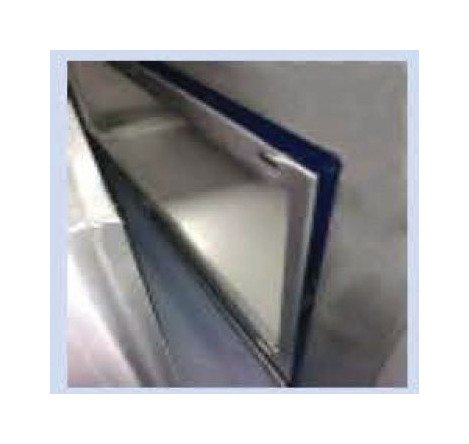

If specified, HEPA or ULPA filters are available that provide up to ISO 4/99.9995 % to 0.012 microns. Gel seal technology is utilized as a standard with all of our systems. The knife edge around the filter plenum is integrally incorporated into the gel trough around the filter. Perforated stainless steel grilles located downstream and flush to the filter protect the filter and provide even air distribution. Both can be serviced from within the clean area.
Note Note
Dimensions are Based on Standard LFI Filters, Substitution with a Customer Preferred Filter Size will Change System Dimensions.Please note standard sizes shown. For custom sizes please contact a LFI sales representative.All systems constructed of 304 or 316L stainless steel polished to a number 4 finish.All industry standard electrical voltages and electrical configurations are available.If applicable, electrical connections, filters & lights may need to be installed in the field by others.Installation, electrical tie-in in field by others.Laminar Flow, Inc. Series 3000C Ceiling Modules are Designed to Be Installed in Areas where a Classification Up to ISO 4 at 0.012 Microns Must Be Achieved.
Options Options
BACNET controlsBackward or forward curved blowersHEPA or ULPA gel sealed filtersColor touchscreen PLC/HMI for controls and diagnosticsFire protection sleeves or SCH 40 pipe with headsCooling coil/Temperature monitoringModular sections for ease of installation and to fit any room configuration12" wide x .080" thick clear PVC curtain strips 8" wide x .12" thick non-static clear PVC curtain stripsSupply/return air from duct collars, low wall returns or pre-filter
Technical Specs Applications
Air DisinfectionAir PurificationAir Filtration
Technical Specs Brands
Laminar Flow Inc.
Technical Specs Fan Type
Backward Curve Fan mounted inside clean area for reduced overall height, access from top or below inside clean area. Filters must be removed to access from clean area.
Technical Specs Height
79-5/8 in
Technical Specs Materials
304 Stainless Steel | 316L Stainless Steel
Technical Specs Width
46-5/8 in
