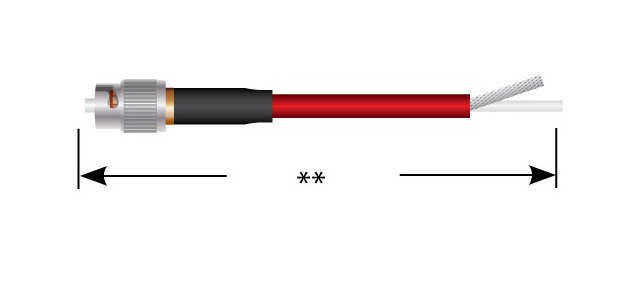

Series 310 Single-Ended Shielded Cable Assembly

Series 310 Single-Ended Shielded Cable Assembly

SKU:HIG-d01ac4

High-performance Series 310 cable assembly for reduced pressure and high voltage applications. RoHS compliant and ideal for institutional procurement.

Regular price $74.99
Regular price Sale price $74.99
Sale

Initiate Order

Series 310 Single-Ended Shielded Cable Assembly

Series 310 Single-Ended Shielded Cable Assembly

$74.99

Quantity: 1

Claim Your Seller Account

Series 310 Single-Ended Shielded Cable Assembly

Series 310 Single-Ended Shielded Cable Assembly

$74.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Series 310 Single-Ended Shielded Cable Assembly is a high-performance solution designed for operation at reduced pressure, ideal for high voltage applications up to 15 kVDC. With a current rating of 10 Amp and an operating temperature range of -40 to 85°C, this cable assembly ensures reliable performance in demanding environments. Its brass bayonet coupling nut with nickel finish provides secure connections, and it mates seamlessly with series 311 Cond. 1 receptacles and adaptors. Compliant with RoHS standards, this cable assembly is a standard part suitable for various institutional and government procurement needs.

Product Specifications

Body Properties Coupling Nut Finish
Gold Plated
Body Properties Coupling Nut Material
Brass
Cable Preparation 0
Reynolds Industries Inc. - High Voltage Connectors, High Voltage Cable Assemblies, High Voltage Wire, High Voltage Cable, High Voltage Capacitors _uacct = "UA-425769-1"; urchinTracker(); CLICK HERE FOR A PHOTOGRAPHIC "HOW TO" Series 310 (P/N 167-4356) Step 1 Cut cable to length, clean and square. Slip boot and crimp sleeve over cable. Strip outer jacket to dimension shown. Trim exposed braid to dimension. Trim inner insulation to dimension. No nicked or severed strands allowed. Pot tin dip inner conductor using SN60 solder in accordance with J-STD-006. Remove all flux. Step 2 Solder contact in place through hole using SN60 solder in accordance with J-STD-006. No solder buildup allowed on contact outer diameter. Completed solder joint must have a continuous fillet of solder between the inner conductor and the contact. The solder in the feed hole must be free of pinholes and flush or below flush. Rear of contact shoulder shall be as flush as possible with insulation of cable core, but not to exceed .030". Flair braid by moving cable core in a circular motion. Step 3 Solder contact in place through hole using SN60 solder in accordance with J-STD-006. Completed solder joint must have a continuous fillet of solder between the conductor and the contact. The solder in the feed hole must be free of pinholes and flush or below flush. Rear of contact shoulder shall be as flush as possible with insulation of cable core, but not to exceed .030". Download this page as a PDF for best print quality.
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Bayonet Coupling Nut Finish
Nickel
Specifications Bayonet Coupling Nut Material
Brass
Specifications Coupling Style
Bayonet
Specifications Current Rating
10 Amp
Specifications End 1
167-4356
Specifications End 2
Pig Tail
Specifications Export Classification
TBD
Specifications Mating Compatibility
Mates series 311 Cond. 1 receptacles and adaptors.
Specifications Operating Temperature
-40 to 85 ºC
Specifications Polarization
Cond. 1
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
310
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
21 kVDC at 70000 ft. (simulated) and ambient temperature
Specifications Voltage Rating
15 kVDC
