Series 450 Heavy Duty I Beam End Clamp
Series 450 Heavy Duty I Beam End Clamp
SKU:CRA-13a16e
Secure and durable end clamp for Series 450 Heavy Duty I Beam, ideal for reliable cable festoon installation.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Series 450 Heavy Duty I Beam End Clamp
$299.99
Quantity: 1
Claim Your Seller Account
Series 450 Heavy Duty I Beam End Clamp
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

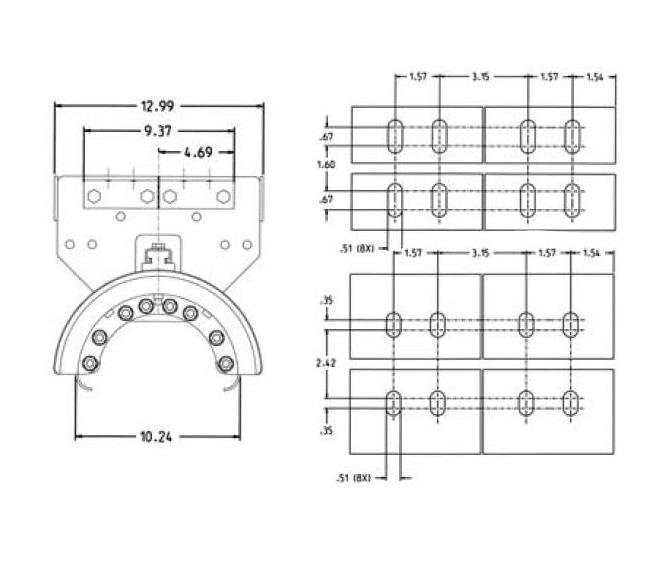

The Series 450 Heavy Duty I Beam End Clamp is a robust solution designed for secure cable festoon installation on heavy-duty I beams. With a 10-inch saddle diameter and a single clamping bar, this clamp ensures reliable and stable support. Its WC dimension of 12.63 inches and W dimension of 31.75 inches accommodate various beam sizes. Weighing 43.6 lbs, this end clamp is built to withstand demanding industrial environments, providing a dependable cable management solution for crane control and electrification systems.
Product Specifications
Specifications Clamping Bar
Single
Specifications Saddle Diameter
10 in | 260 mm
Specifications W
31.75 in | 806 mm
Specifications Wc
12.63 in | 320 mm
Specifications Weight
43.6 lb | 19.8 kg
