Series 450 Heavy Duty I Beam Running Gear
Series 450 Heavy Duty I Beam Running Gear
SKU:CRA-bdf9b7
High-performance Series 450 Running Gear for heavy-duty crane applications, with hardened steel rollers, easy maintenance, and robust construction.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Series 450 Heavy Duty I Beam Running Gear
$249.99
Quantity: 1
Claim Your Seller Account
Series 450 Heavy Duty I Beam Running Gear
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

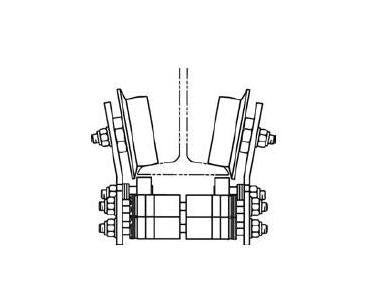

The Series 450 Heavy Duty I Beam Running Gear is a robust solution for efficient crane operations. This running gear includes (4) side shields with durable hardened steel main rollers, galvanized steel spacers, and stainless steel fasteners for enhanced longevity and performance. Designed for easy maintenance, it features anti-lift rollers with sealed ball bearings and independent side shield removal capability. With a maximum load capacity of 450 lb, operating temperature range from -22 to 220 °F, and a speed rating of 500 fpm, this running gear is ideal for heavy-duty applications on S5 x 14.75 in beams.
Product Specifications
Specifications Beam Size
S5 x 14.75 in
Specifications Main Roller Diameter
2.5 in | 62 mm
Specifications Maximum Load
450 lb | 204 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Flanged, with Anti-Lift Rollers
Specifications Speed
500 fpm
Specifications Weight
27.3 lb | 12.4 kg
