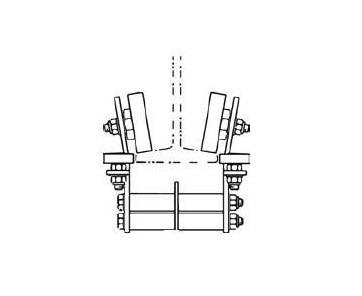

The Series 450 Running Gear for S Beams is a robust solution designed for heavy-duty applications in crane control systems. This running gear comprises four side shields with durable steel main rollers, galvanized steel spacers, and stainless steel fasteners. The main rollers are made of hardened steel with precision ball bearings, ensuring smooth operation. Additionally, the anti-lift rollers have sealed ball bearings and horizontal guide rollers for enhanced stability during movement. With a maximum load capacity of 1100 lb and a speed rating of 500 fpm, this running gear is ideal for industrial settings where reliability is paramount. The design allows for independent side shield removal, facilitating easy maintenance and installation.
Product Specifications
Specifications Beam Size
S7 x 15.3 in
Specifications Main Roller Diameter
4 in | 100 mm
Specifications Maximum Load
1100 lb | 500 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Crowned, with Horizontal Guide Rollers
Specifications Speed
500 fpm
Specifications Weight
36.1 lb | 16.4 kg
