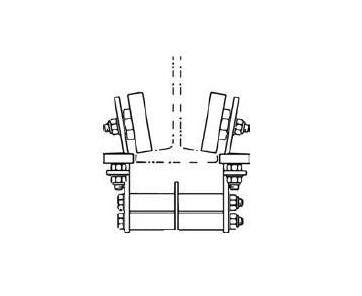

Series 450 Heavy Duty I Beam Running Gear for Crane S Beams

Name: Series 450 Heavy Duty I Beam Running Gear for Crane S Beams
Brand: Clutch Engineering
SKU: CRA-e88b45
Price: 299.99 USD
Availability: OutOfStock

SKU:CRA-e88b45

Enhance crane efficiency with Series 450 Heavy Duty I Beam Running Gear for S Beams

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Series 450 Heavy Duty I Beam Running Gear for Crane S Beams is a robust solution designed for optimal performance in industrial settings. This running gear features (4) side shields with hardened steel main rollers and sealed ball bearings for smooth operation. With a high load capacity of 450 lbs and a maximum speed of 500 fpm, it ensures reliable and efficient movement along S7 x 20.0 inch beams. The galvanized steel construction and independent side shield removal capability make it durable and easy to maintain, meeting the stringent requirements of industrial and institutional procurement standards.

Product Specifications

Specifications Beam Size

S7 x 20.0 in

Specifications Main Roller Diameter

2.5 in | 62 mm

Specifications Maximum Load

450 lb | 204 kg

Specifications Operating Temperature

-22 to 220 ÂºF

Specifications Running Gear Type

Steel Main Rollers, Crowned, with Horizontal Guide Rollers

Specifications Speed

500 fpm

Specifications Weight

24.8 lb | 11.2 kg

Series 450 Heavy Duty I Beam Running Gear for Crane S Beams
