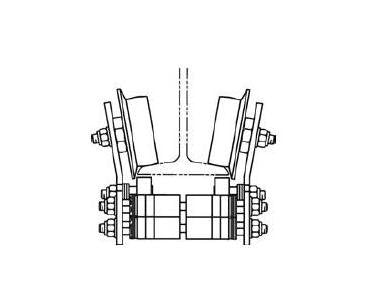

Series 450 Heavy Duty I Beam Running Gear for S Beams

Name: Series 450 Heavy Duty I Beam Running Gear for S Beams
Brand: Clutch Engineering
SKU: CRA-d75eb7
Price: 349.99 USD
Availability: OutOfStock

SKU:CRA-d75eb7

Enhance crane control with the robust Series 450 Heavy Duty I Beam Running Gear for S Beams. Smooth operation, high load capacity, and easy maintenance.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Series 450 Heavy Duty I Beam Running Gear for S Beams is a robust solution designed for efficient crane control and electrification. Featuring steel main rollers with flanged anti-lift rollers, this running gear ensures smooth operation under extreme conditions (-22 to 220 ÂºF). With a maximum load capacity of 450 lb, a main roller diameter of 2.5 in, and a speed rating of 500 fpm, this running gear provides exceptional performance and reliability. The independent side shield removal design enhances usability, making maintenance hassle-free.

Product Specifications

Specifications Beam Size

S4 x 7.7 in

Specifications Main Roller Diameter

2.5 in | 62 mm

Specifications Maximum Load

450 lb | 204 kg

Specifications Operating Temperature

-22 to 220 ÂºF

Specifications Running Gear Type

Steel Main Rollers, Flanged, with Anti-Lift Rollers

Specifications Speed

500 fpm

Specifications Weight

27.3 lb | 12.4 kg

Series 450 Heavy Duty I Beam Running Gear for S Beams
