Series 450 Heavy Duty I Beam Running Gear for S Beams
Series 450 Heavy Duty I Beam Running Gear for S Beams
SKU:CRA-585a9b
Premium Series 450 Running Gear for S Beams - Hardened steel rollers, high load capacity, ideal for crane control systems.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Series 450 Heavy Duty I Beam Running Gear for S Beams
$249.99
Quantity: 1
Claim Your Seller Account
Series 450 Heavy Duty I Beam Running Gear for S Beams
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

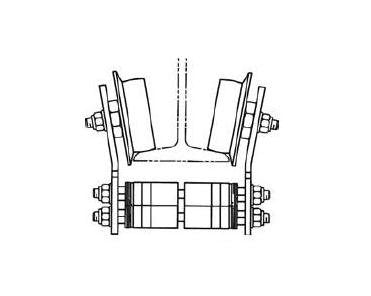

The Series 450 Heavy Duty I Beam Running Gear for S Beams is a top-of-the-line solution for efficient and reliable cable festoon systems. This running gear features (4) side shields with hardened steel main rollers and zinc-plated anti-lift rollers, ensuring smooth operation and durability. With a maximum load capacity of 1100 lb and an operating temperature range from -22 to 220 °F, this running gear is designed for performance in demanding environments. Its independent side shield removal capability adds convenience during maintenance. Ideal for crane control & electrification projects requiring heavy-duty components.
Product Specifications
Specifications Beam Size
S8 x 18.4 in
Specifications Main Roller Diameter
4 in | 100 mm
Specifications Maximum Load
1100 lb | 500 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Flanged, without Anti-Lift Rollers
Specifications Speed
500 fpm
Specifications Weight
36.1 lb | 16.4 kg
