Series 450 Heavy Duty I Beam Running Gear for S Beams
Series 450 Heavy Duty I Beam Running Gear for S Beams
SKU:CRA-9226b8
Upgrade your crane system with Series 450 Running Gear for S Beams. Supports 1100 lb loads with ease.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Series 450 Heavy Duty I Beam Running Gear for S Beams
$289.99
Quantity: 1
Claim Your Seller Account
Series 450 Heavy Duty I Beam Running Gear for S Beams
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

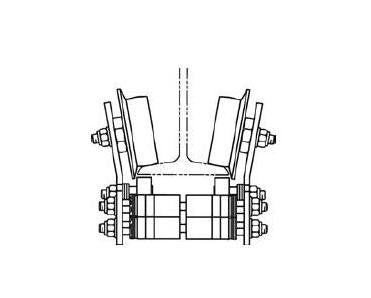

Enhance your crane system with the Series 450 Running Gear for S Beams. This running gear includes four side shields with zinc-plated steel main rollers and sealed ball bearings for smooth operation. Designed for easy side shield removal, it can withstand temperatures from -22 to 220 °F and support up to 1100 lb loads at speeds up to 500 fpm. With a main roller diameter of 4 inches and compatible with S8 x 18.4-inch beams, this running gear ensures efficient and reliable performance in heavy-duty applications.
Product Specifications
Specifications Beam Size
S8 x 18.4 in
Specifications Main Roller Diameter
4 in | 100 mm
Specifications Maximum Load
1100 lb | 500 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Flanged, with Anti-Lift Rollers
Specifications Speed
500 fpm
Specifications Weight
38.5 lb | 17.5 kg
