Series 450 Heavy Duty I Beam Running Gear for W Beams
Series 450 Heavy Duty I Beam Running Gear for W Beams
SKU:CRA-7d224d
Enhance your cable festoon system with the Series 450 Running Gear for W Beams. Durable, high-load capacity, and easy maintenance.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Series 450 Heavy Duty I Beam Running Gear for W Beams
$189.99
Quantity: 1
Claim Your Seller Account
Series 450 Heavy Duty I Beam Running Gear for W Beams
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

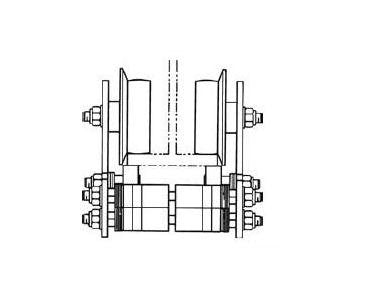

The Series 450 Heavy Duty I Beam Running Gear for W Beams is a robust solution designed for smooth and efficient cable festoon systems. This running gear consists of four side shields with hardened steel main rollers and anti-lift rollers, ensuring durability and precision. With a maximum load capacity of 450 lb and a high operating speed of 500 fpm, it is suitable for heavy-duty applications. The galvanized steel construction, sealed ball bearings, and independent side shield removal feature make it a reliable choice for industrial settings.
Product Specifications
Specifications Beam Size
W4 x 13 in
Specifications Main Roller Diameter
2.5 in | 62 mm
Specifications Maximum Load
450 lb | 204 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Flanged, with Anti-Lift Rollers
Specifications Speed
500 fpm
Specifications Weight
24 lb | 10.9 kg
