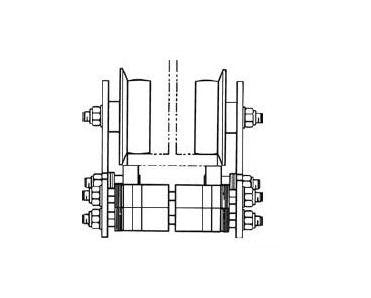

The Series 450 Heavy Duty I Beam Running Gear for W Beams is a robust solution designed for crane control and electrification applications, specifically engineered for heavy-duty usage. This running gear features (4) side shields with hardened steel main rollers and zinc-plated anti-lift rollers, ensuring smooth operation and durability. The galvanized steel spacers and stainless steel fasteners provide additional corrosion resistance, ideal for a wide operating temperature range from -22 to 220°F. With a maximum load capacity of 1100 lb and a main roller diameter of 4 inches, this running gear is built to handle demanding industrial environments with ease. The independent side shield removal design enhances maintenance efficiency, making it a reliable choice for various industrial settings.
Product Specifications
Specifications Beam Size
W8 x 10 in
Specifications Main Roller Diameter
4 in | 100 mm
Specifications Maximum Load
1100 lb | 500 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Flanged, with Anti-Lift Rollers
Specifications Speed
500 fpm
Specifications Weight
36.2 lb | 16.4 kg
