Series 450 Heavy Duty I Beam Running Gear for W Beams

Name: Series 450 Heavy Duty I Beam Running Gear for W Beams
Brand: Clutch Engineering
SKU: CRA-c19205
Price: 299.99 USD
Availability: OutOfStock

SKU:CRA-c19205

Enhance crane control with Series 450 Running Gear - robust, reliable, and easy maintenance.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

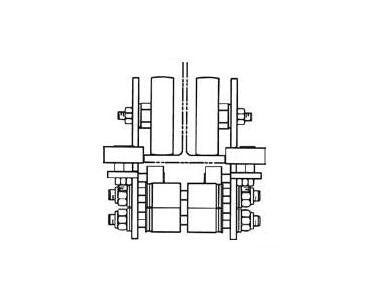

Upgrade your cable festoon system with the Series 450 Running Gear for W Beams. This running gear features hardened steel main rollers with sealed ball bearings, zinc-plated horizontal guide rollers, and anti-lift rollers for smooth operation. With a maximum load capacity of 1100 lb and designed for easy side shield removal, this running gear ensures reliable performance in temperatures ranging from -22 to 220 ÂºF. Ideal for heavy-duty applications, the Series 450 enhances efficiency and durability in crane control systems.

Product Specifications

Specifications Beam Size

W5 x 16 in

Specifications Main Roller Diameter

4 in | 100 mm

Specifications Maximum Load

1100 lb | 500 kg

Specifications Operating Temperature

-22 to 220 ÂºF

Specifications Running Gear Type

Steel Main Rollers, Crowned, with Horizontal Guide & Anti-Lift Rollers

Specifications Speed

500 fpm

Specifications Weight

38.5 lb | 17.5 kg

Series 450 Heavy Duty I Beam Running Gear for W Beams
