Series 450 Heavy Duty I Beam Running Gear for W Beams
Series 450 Heavy Duty I Beam Running Gear for W Beams
SKU:CRA-f26550
Enhance crane systems with Series 450 Running Gear for W Beams. Hardened steel rollers, 450 lb load capacity, easy maintenance.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Series 450 Heavy Duty I Beam Running Gear for W Beams
$349.99
Quantity: 1
Claim Your Seller Account
Series 450 Heavy Duty I Beam Running Gear for W Beams
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

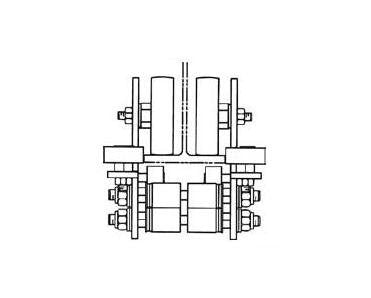

Upgrade your crane system with the Series 450 Running Gear designed for seamless operation. Featuring hardened steel main rollers with precision ball bearings, zinc-plated horizontal guide, and anti-lift rollers. With a maximum load capacity of 450 lb and operating temperature range of -22 to 220 ºF, this running gear ensures smooth and efficient movement along W beams. Independent side shield removal simplifies maintenance and installation.
Product Specifications
Specifications Beam Size
W6 x 12 in
Specifications Main Roller Diameter
2.5 in | 62 mm
Specifications Maximum Load
450 lb | 204 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Crowned, with Horizontal Guide & Anti-Lift Rollers
Specifications Speed
500 fpm
Specifications Weight
27.3 lb | 12.4 kg
