Series 450 Heavy Duty I Beam Running Gear for W Beams
Series 450 Heavy Duty I Beam Running Gear for W Beams
SKU:CRA-dc291a
Upgrade your crane system with Series 450 Running Gear for W Beams. Durable, high load capacity design for smooth operation at high speeds.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Series 450 Heavy Duty I Beam Running Gear for W Beams
$299.99
Quantity: 1
Claim Your Seller Account
Series 450 Heavy Duty I Beam Running Gear for W Beams
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

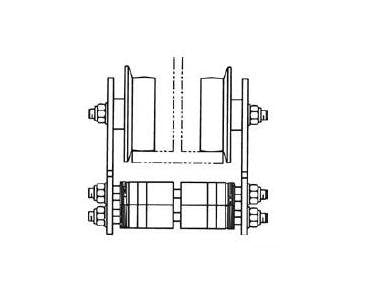

Enhance the efficiency of your crane system with the Series 450 Heavy Duty I Beam Running Gear designed for W Beams. This premium running gear features (4) side shields with hardened steel main rollers, galvanized steel spacers, and stainless steel fasteners for durability. With a maximum load capacity of 450 lb and a main roller diameter of 2.5 in, this running gear ensures smooth operation at speeds of up to 500 fpm. Designed for easy maintenance, the independent side shield removal capability simplifies upkeep and prolongs the product's lifespan.
Product Specifications
Specifications Beam Size
W5 x 16 in
Specifications Main Roller Diameter
2.5 in | 62 mm
Specifications Maximum Load
450 lb | 204 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Flanged, without Anti-Lift Rollers
Specifications Speed
500 fpm
Specifications Weight
23 lb | 10.4 kg
