Series 450 Heavy Duty I Beam Running Gear for W Beams
Series 450 Heavy Duty I Beam Running Gear for W Beams
SKU:CRA-a36263
Upgrade to Series 450 Running Gear: Durable, high-capacity solution for heavy-duty crane systems.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Series 450 Heavy Duty I Beam Running Gear for W Beams
$349.99
Quantity: 1
Claim Your Seller Account
Series 450 Heavy Duty I Beam Running Gear for W Beams
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

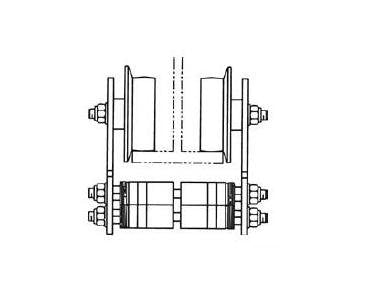

Enhance your crane system with the Series 450 Heavy Duty I Beam Running Gear. This running gear features four side shields with hardened steel main rollers, galvanized steel spacers, and stainless steel fasteners for durability and smooth operation. With a maximum load capacity of 450 lb, operating temperature range of -22 to 220 °F, and designed for easy side shield removal, this running gear is ideal for heavy-duty applications. Compliant with industry standards for crane control and electrification, it ensures reliable performance in demanding environments.
Product Specifications
Specifications Beam Size
W6 x 12 in
Specifications Main Roller Diameter
2.5 in | 62 mm
Specifications Maximum Load
450 lb | 204 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Flanged, without Anti-Lift Rollers
Specifications Speed
500 fpm
Specifications Weight
23 lb | 10.4 kg
