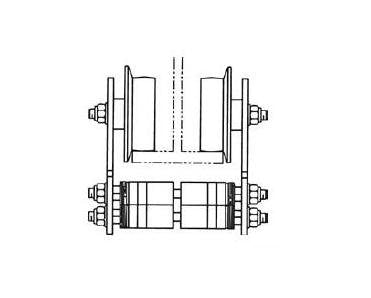

Series 450 Heavy Duty I Beam Running Gear for W Beams
Series 450 Heavy Duty I Beam Running Gear for W Beams
SKU:CRA-e920c9
Durable Series 450 Running Gear for W Beams with hardened steel rollers, easy side shield removal, and 450 lb load capacity.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Series 450 Heavy Duty I Beam Running Gear for W Beams
$299.99
Quantity: 1
Claim Your Seller Account
Series 450 Heavy Duty I Beam Running Gear for W Beams
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 450 Heavy Duty I Beam Running Gear for W Beams is a robust solution for crane cable festoon systems. It includes four side shields with hardened steel main rollers and zinc-plated anti-lift rollers. With a maximum load capacity of 450 lb and operating temperature range of -22 to 220 ºF, this running gear ensures reliable and smooth movement at a speed of 500 fpm. Designed for easy side shield removal, it is crafted for durability and efficiency in heavy-duty applications.
Product Specifications
Specifications Beam Size
W8 x 15 in
Specifications Main Roller Diameter
2.5 in | 62 mm
Specifications Maximum Load
450 lb | 204 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Flanged, without Anti-Lift Rollers
Specifications Speed
500 fpm
Specifications Weight
23 lb | 10.4 kg
