Series 450 Heavy Duty Running Gear for W Beams
Series 450 Heavy Duty Running Gear for W Beams
SKU:CRA-13fdbf
Enhance crane systems with Series 450 Heavy Duty Running Gear for W Beams. Hardened steel rollers, high load capacity, and versatile design.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Series 450 Heavy Duty Running Gear for W Beams
$399.99
Quantity: 1
Claim Your Seller Account
Series 450 Heavy Duty Running Gear for W Beams
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

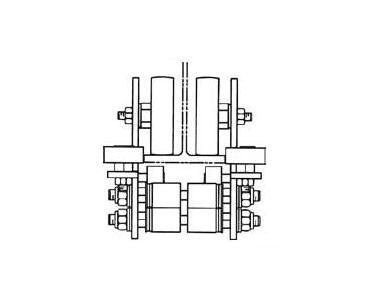

Upgrade your crane system with the Series 450 Heavy Duty Running Gear designed for optimal performance. This running gear features hardened steel main rollers with precision ball bearings, zinc-plated horizontal guide and anti-lift rollers, and independent side shield removal capability. With a maximum load capacity of 1100 lb and operating temperature range of -22 to 220 °F, this running gear ensures smooth and reliable operation even in demanding environments. Compliant with industry standards for heavy-duty applications.
Product Specifications
Specifications Beam Size
W8 x 10 in
Specifications Main Roller Diameter
4 in | 100 mm
Specifications Maximum Load
1100 lb | 500 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Crowned, with Horizontal Guide & Anti-Lift Rollers
Specifications Speed
500 fpm
Specifications Weight
38.5 lb | 17.5 kg
