Series 450 Running Gear for W Beams - Heavy Duty I Beam Festoon System
Series 450 Running Gear for W Beams - Heavy Duty I Beam Festoon System
SKU:CRA-867a62
Enhance crane operations with the Series 450 Running Gear: durable, high load capacity, and corrosion-resistant design.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Series 450 Running Gear for W Beams - Heavy Duty I Beam Festoon System
$289.99
Quantity: 1
Claim Your Seller Account
Series 450 Running Gear for W Beams - Heavy Duty I Beam Festoon System
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

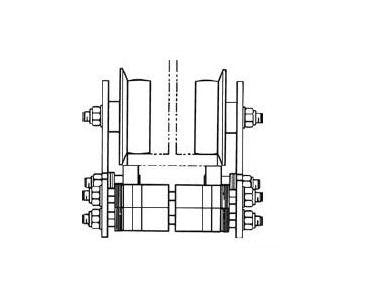

The Series 450 Running Gear is a robust solution designed for durability and efficiency in crane applications. This running gear includes (4) side shields with hardened steel main rollers featuring zinc plating and sealed ball bearings for smooth operation. With a maximum load capacity of 1100 lb and a main roller diameter of 4 inches, it is suitable for heavy-duty use. The galvanized steel spacers and stainless steel fasteners ensure corrosion resistance, making it ideal for industrial settings. Independently removable side shields enhance maintenance accessibility, while the steel main rollers with anti-lift rollers guarantee reliable performance.
Product Specifications
Specifications Beam Size
W6 x 16 in
Specifications Main Roller Diameter
4 in | 100 mm
Specifications Maximum Load
1100 lb | 500 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Flanged, with Anti-Lift Rollers
Specifications Speed
500 fpm
Specifications Weight
36.2 lb | 16.4 kg
