Series 450 Steel Running Gear for S5 Beams
Series 450 Steel Running Gear for S5 Beams
SKU:CRA-f06dd9
Enhance crane with Series 450 Steel Running Gear for S5 Beams. Hardened steel rollers, max load 450 lb, -22 to 220 ºF temp range.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Series 450 Steel Running Gear for S5 Beams
$349.99
Quantity: 1
Claim Your Seller Account
Series 450 Steel Running Gear for S5 Beams
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

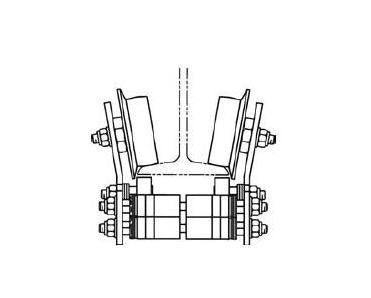

Upgrade your crane system with the heavy-duty Series 450 Steel Running Gear designed for S5 Beams. This running gear features hardened steel main rollers with sealed precision ball bearings, zinc-plated anti-lift rollers, and easy side shield removal. With a maximum load capacity of 450 lb and a temperature range from -22 to 220 ºF, this running gear ensures smooth and reliable operation even in demanding industrial environments.
Product Specifications
Specifications Beam Size
S5 x 10.0 in
Specifications Main Roller Diameter
2.5 in | 62 mm
Specifications Maximum Load
450 lb | 204 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Flanged, with Anti-Lift Rollers
Specifications Speed
500 fpm
Specifications Weight
27.3 lb | 12.4 kg
