Series 50 Butterfly Valve
Series 50 Butterfly Valve
SKU:VAL-7cae2e
Series 50 Butterfly Valve: Precision-engineered for durability and reliability. Available in a wide range of sizes and materials to suit diverse applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Series 50 Butterfly Valve
$349.99
Quantity: 1
Claim Your Seller Account
Series 50 Butterfly Valve
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 50 Butterfly Valve is designed for precision and durability. Compliant with ISO standards, this valve features a wide size range from 40A to 1000A, with body materials including cast iron, ductile iron, carbon steel, stainless steel, and bronze. The disc, stem, and seat materials offer exceptional resilience, making it suitable for a variety of applications. Whether in industrial, commercial, or institutional settings, the Series 50 Butterfly Valve ensures reliable performance and longevity.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

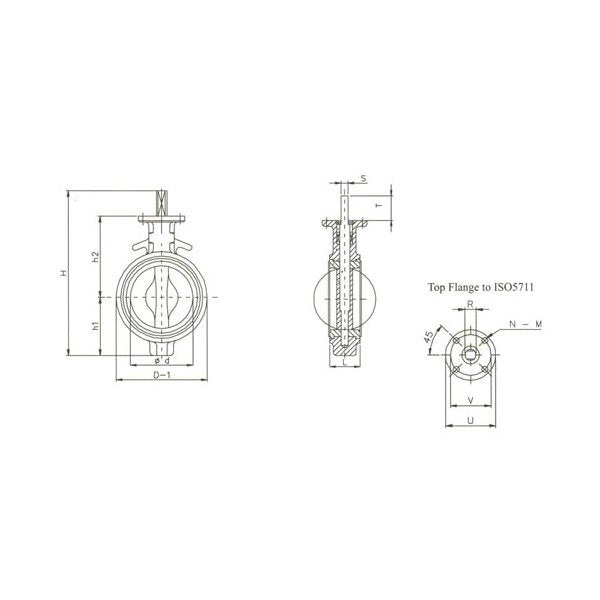

Specifications D
198 mm
Specifications D 1
259 mm
Specifications H
412 mm
Specifications H1
163 mm
Specifications H2
217 mm
Specifications L
60 mm
Specifications Size
200 - 8"
Specifications Standard
ISO
Specifications Stem R
22 mm
Specifications Stem S
15 mm
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Type
Butterfly Valve
Specifications Weight
11.0 kg
