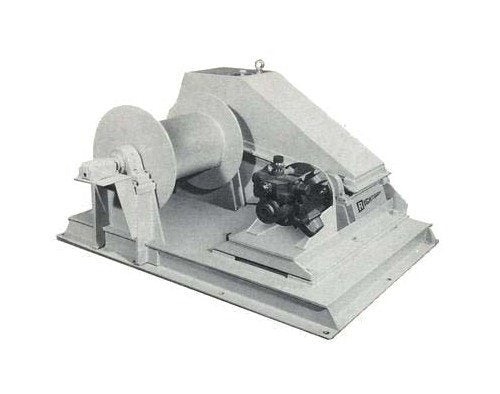

Series 50 Model PA Air Winches
Series 50 Model PA Air Winches
SKU:RIG-6d40c0
Rugged Series 50 Model PA Air Winches with high torque and safety features, ideal for lifting and pulling applications.
Regular price
$3,250.00
Regular price
Sale price
$3,250.00
Unit price
per
Initiate Order
Series 50 Model PA Air Winches
$3,250.00
Quantity: 1
Claim Your Seller Account
Series 50 Model PA Air Winches
$3,250.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 50 Model PA Air Winches are built for all-weather use, featuring all-steel construction with a minimum 5 to 1 structural safety factor. With an enclosed oil-lubricated power train and automatic mechanical load holding brake that does not generate heat, these winches ensure high efficiency power transmission. The high torque hoist duty explosion and burn out proof variable speed air motor, alongside large diameter drums, not only increase wire rope life but also allow for lifting more with less horsepower. Ideal for lifting and pulling applications, these winches come with optional equipment like control valves, pendant remote control, and various shut-off features.
Product Specifications
Specifications Air Requirement
200 CFM
Specifications Capacity Full Load Running
4000
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum Diameter
10 inches
Specifications Full Drum
750 ft.
Specifications Line Speed
60 FPM
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
550 lbs.
Specifications Optional Equipment
Control valve hand operated forward - reverse - off | Pendant Remote Control, 100 ft. Max. Pendant Length | Slack Line Air Shut-off | Limit Travel Air Shut-off | Overspeed automatic load holding drum brake and air shut-off | Filter - Oiler, Exhaust Muffler, Air Pressure Regulator
Specifications Winch Height
20 inches
Specifications Winch Length
27 inches
Specifications Winch Width
28 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
290 ft.
Specifications Wire Rope Size
7/16 inches
Standard Features 0
All weather use is ideal for model PA air All steel construction minimum 5 to 1 structural safety factor Total power train enclosed oil lubricatedAutomatic mechanical load holding brake. Brake does not create heat High efficiency power transmission lift more or faster with less horsepower required Variable speed air motor high torque hoist duty explosion and burn out proof Large diameter drums increases wire rope life
