Series 50 Model PA Air Winches - Heavy-Duty Air-Powered Winch
Series 50 Model PA Air Winches - Heavy-Duty Air-Powered Winch
SKU:RIG-b6ab50
Heavy-duty Series 50 Model PA Air Winches for reliable performance in all conditions. High torque motor, automatic load holding brake, and durable construction for lifting and pulling tasks.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Series 50 Model PA Air Winches - Heavy-Duty Air-Powered Winch
$2,899.99
Quantity: 1
Claim Your Seller Account
Series 50 Model PA Air Winches - Heavy-Duty Air-Powered Winch
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

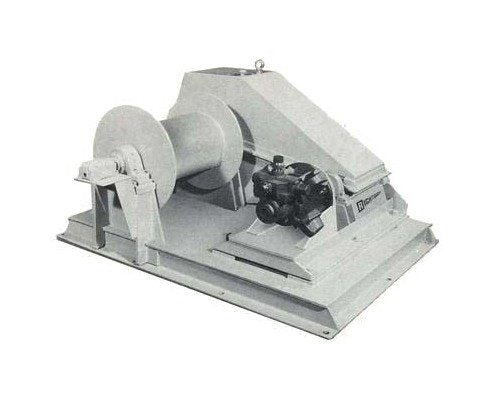

The Series 50 Model PA Air Winches are built to withstand all weather conditions with their all-steel construction and a minimum 5 to 1 structural safety factor, ensuring reliable performance in demanding environments. Featuring a total power train enclosed oil lubricated system and automatic mechanical load holding brake that does not generate heat, these air winches offer superior safety and efficiency. Equipped with a high torque hoist duty explosion-proof air motor and large diameter drums, these winches provide high performance while extending wire rope life. With a capacity of 6000 lbs. and a line speed of 15 FPM, these winches are perfect for lifting and pulling tasks, meeting the needs of both consumer and institutional buyers.
Product Specifications
Specifications Air Requirement
80 CFM
Specifications Capacity Full Load Running
6000
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum Diameter
8 inches
Specifications Full Drum
390 ft.
Specifications Line Speed
15 FPM
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
425 lbs.
Specifications Optional Equipment
Control valve hand operated forward - reverse - off | Pendant Remote Control, 100 ft. Max. Pendant Length | Slack Line Air Shut-off | Limit Travel Air Shut-off | Overspeed automatic load holding drum brake and air shut-off | Filter - Oiler, Exhaust Muffler, Air Pressure Regulator
Specifications Winch Height
17 inches
Specifications Winch Length
24 inches
Specifications Winch Width
22 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
180 ft.
Specifications Wire Rope Size
1/2 inches
Standard Features 0
All weather use is ideal for model PA air All steel construction minimum 5 to 1 structural safety factor Total power train enclosed oil lubricatedAutomatic mechanical load holding brake. Brake does not create heat High efficiency power transmission lift more or faster with less horsepower required Variable speed air motor high torque hoist duty explosion and burn out proof Large diameter drums increases wire rope life
