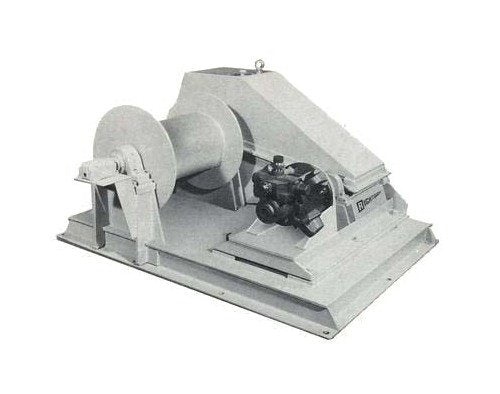

Series 50 Model PA Air Winches - Heavy Duty Air Winch for Reliable Performance
Series 50 Model PA Air Winches - Heavy Duty Air Winch for Reliable Performance
SKU:RIG-73509d
Series 50 Model PA Air Winches - Heavy-duty, all-weather, high-torque air winches for reliable lifting operations.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
Series 50 Model PA Air Winches - Heavy Duty Air Winch for Reliable Performance
$2,999.99
Quantity: 1
Claim Your Seller Account
Series 50 Model PA Air Winches - Heavy Duty Air Winch for Reliable Performance
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 50 Model PA Air Winches are built for robust performance in all weather conditions. Constructed with high-strength steel and featuring a minimum 5 to 1 structural safety factor, these winches ensure reliable operation. The fully enclosed oil lubricated power train, along with the automatic mechanical load holding brake that doesn't generate heat, guarantees safe and efficient lifting operations. With a high-efficiency power transmission system and a variable speed air motor, these winches deliver high torque for hoist duties, making them explosion-proof and burn-out proof. The large diameter drums increase wire rope durability, while optional equipment such as control valves and pendant remote controls enhance usability in various applications.
Product Specifications
Specifications Air Requirement
220 CFM
Specifications Capacity Full Load Running
10000
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum Diameter
12 inches
Specifications Full Drum
600 ft.
Specifications Line Speed
25 FPM
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
800 lbs.
Specifications Optional Equipment
Control valve hand operated forward - reverse - off | Pendant Remote Control, 100 ft. Max. Pendant Length | Slack Line Air Shut-off | Limit Travel Air Shut-off | Overspeed automatic load holding drum brake and air shut-off | Filter - Oiler, Exhaust Muffler, Air Pressure Regulator
Specifications Winch Height
22 inches
Specifications Winch Length
32 inches
Specifications Winch Width
40 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
375 ft.
Specifications Wire Rope Size
5/8 inches
Standard Features 0
All weather use is ideal for model PA air All steel construction minimum 5 to 1 structural safety factor Total power train enclosed oil lubricatedAutomatic mechanical load holding brake. Brake does not create heat High efficiency power transmission lift more or faster with less horsepower required Variable speed air motor high torque hoist duty explosion and burn out proof Large diameter drums increases wire rope life
