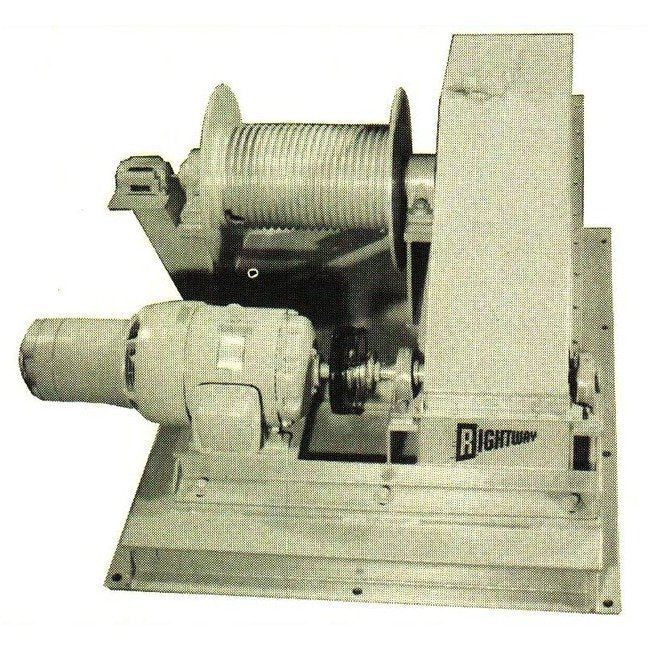

Series 50 Model PE Electric Winch - Heavy Duty Crane & Hoist Duty Motor
Series 50 Model PE Electric Winch - Heavy Duty Crane & Hoist Duty Motor
SKU:RIG-0bf24a
Heavy-duty Series 50 Model PE Electric Winch with high torque motor, safety brake, and durable construction for efficient lifting and pulling operations.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Series 50 Model PE Electric Winch - Heavy Duty Crane & Hoist Duty Motor
$1,299.99
Quantity: 1
Claim Your Seller Account
Series 50 Model PE Electric Winch - Heavy Duty Crane & Hoist Duty Motor
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 50 Model PE Electric Winch is engineered for heavy-duty lifting and pulling applications. Built with all-steel construction featuring a minimum 5 to 1 structural safety factor, this winch is designed for all-weather use. Equipped with an oil-lubricated power train, it ensures high efficiency power transmission, enabling more load lifted with less horsepower. The automatic mechanical load holding brake provides safe and controlled operations. With a high torque crane and hoist duty motor, large diameter drums, and various optional equipment like electric motor brake and torque limiter, this winch is a reliable choice for demanding industrial tasks.
Product Specifications
Specifications Capacity Full Load Running
1000
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum Diameter
4 inches
Specifications Full Drum
250 ft.
Specifications Line Speed
15 FPM
Specifications Motor
1/2 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
230 lbs.
Specifications Optional Equipment
Grooved drums | Free spooling drums | Drum cable pressure roller for level winding assistance also prevents wire rope from uncoiling on drum when slack line occurs | Overspeed automatic load holding drum brake and electric shut-off | Torque limiter, mechanical (automatic resets when overload removed) | Rotary geared limit switch, NEMA 4 | Electric Motor Brake (recommended for all hoisting applications)
Specifications Winch Height
15 inches
Specifications Winch Length
24 inches
Specifications Winch Width
18 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
105 ft.
Specifications Wire Rope Size
1/4 inches
Standard Features 0
All weather use is ideal for model PE All steel construction minimum 5 to 1 structural safety factorTotal power train enclosed oil lubricatedAutomatic mechanical load holding brake. Brake does not create heat High efficiency power transmission lift more or faster with less horsepower required High torque crane and hoist duty motor starting capacity is minimum two (2) times running Large diameter drums increases wire rope life
